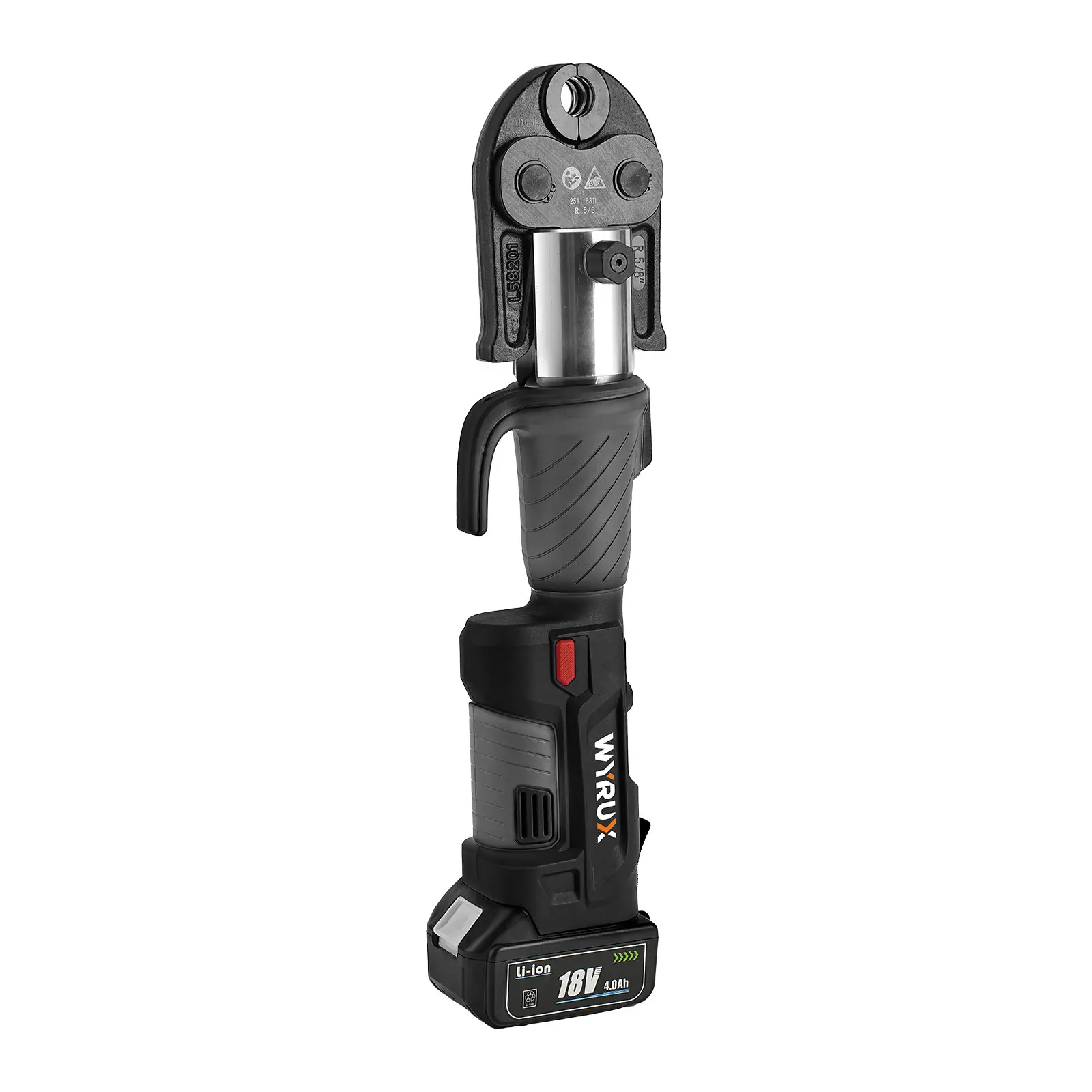

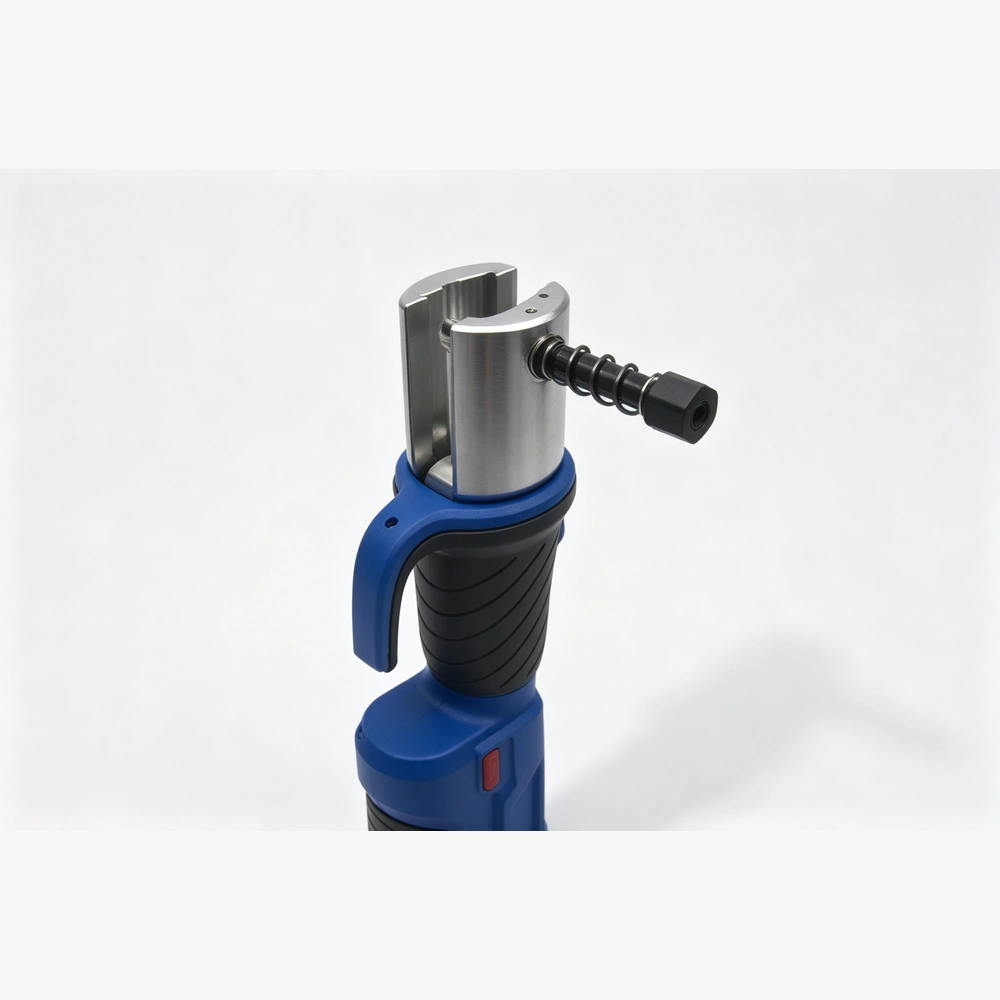

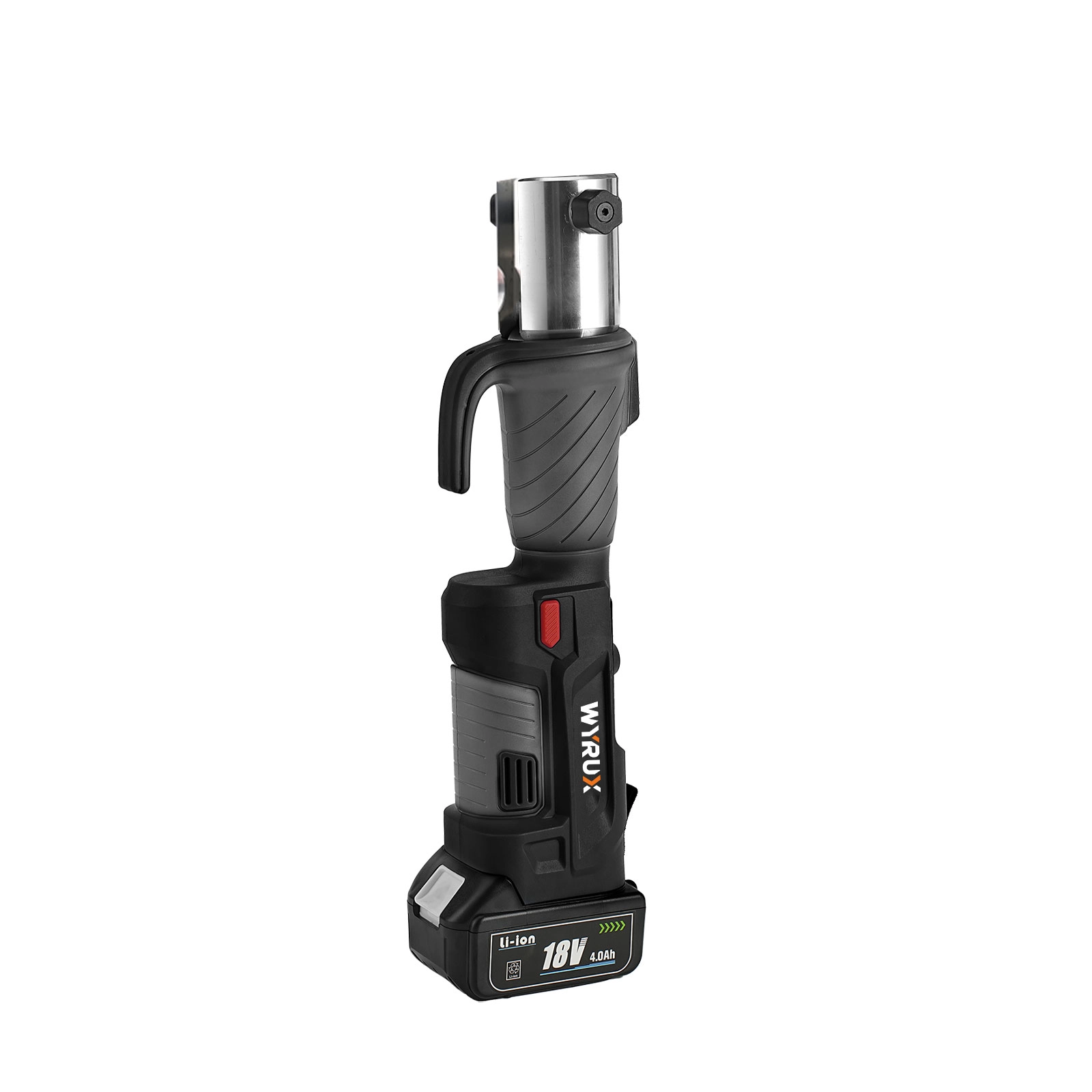

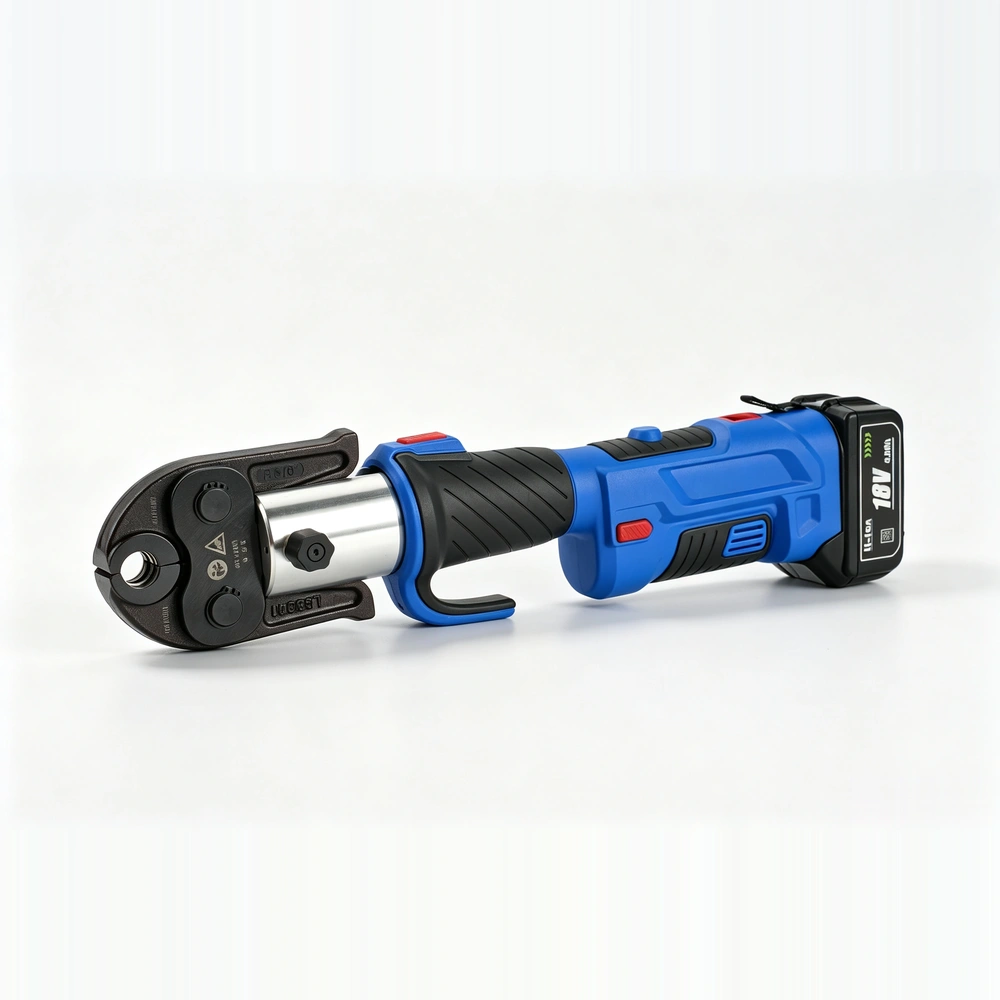

Name: SM-1550B (32 kN) Battery Powered Press Tool
Brand: WYRUX
SKU: SM-1550B

SM-1550B(32kN)

32kN standard press tool

Specifications

Model	SM-1550B
Tool type	Standard press tool
Output force	32 kN
Stroke	40mm
Tool weight (without battery)	2.8kg

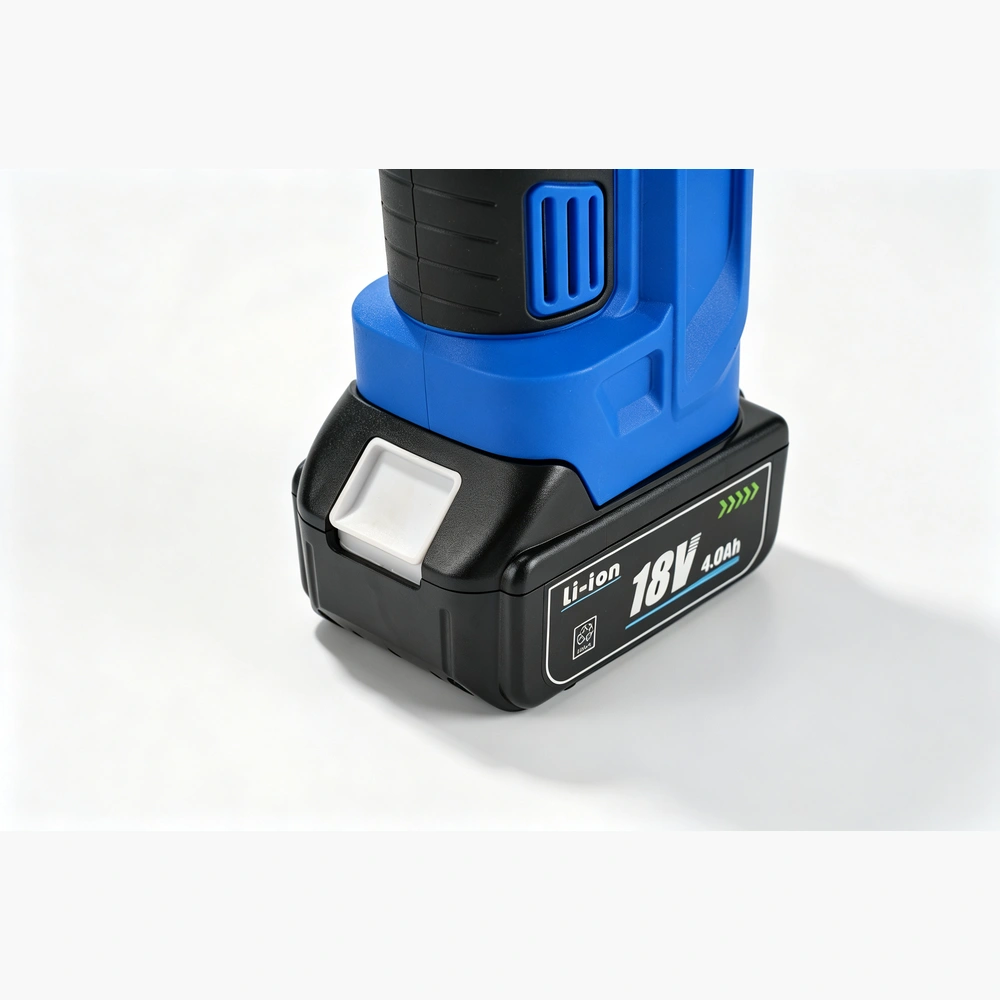

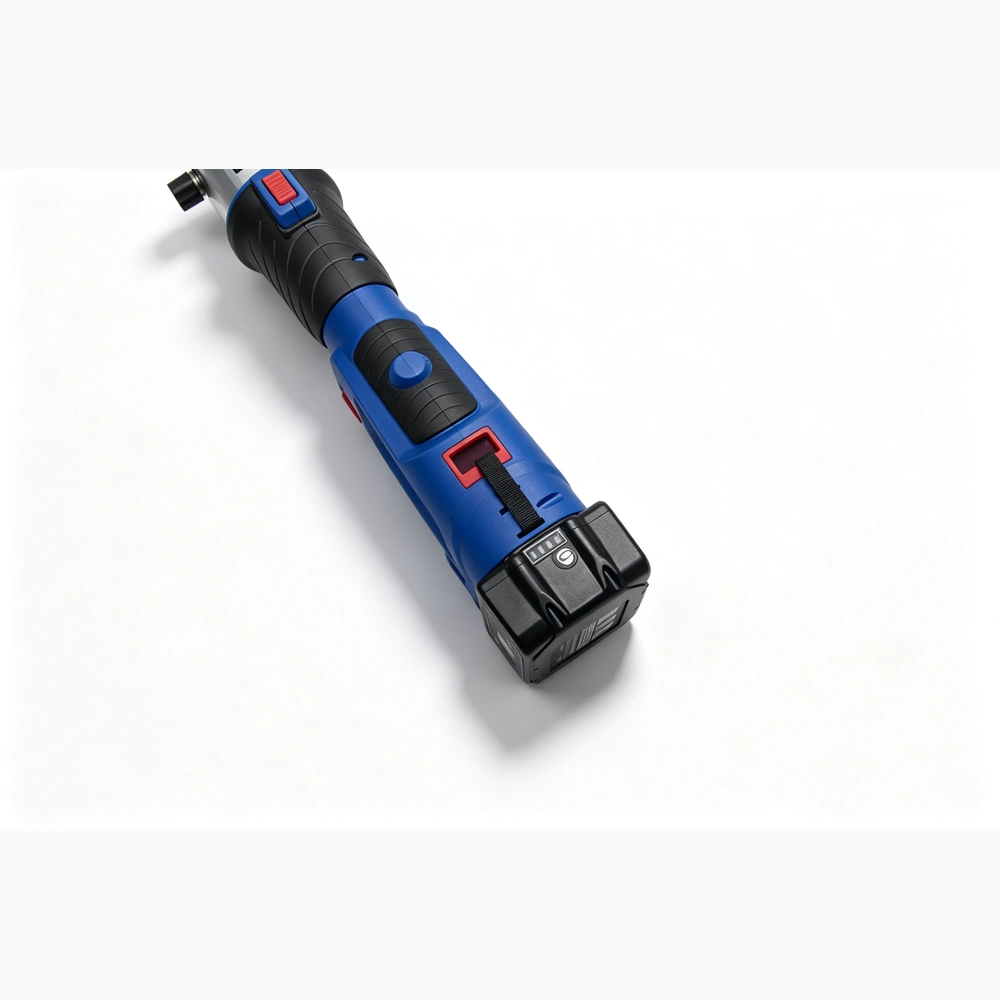

Power source	18V Li-ion rechargeable battery
Battery capacity	4.0 Ah × 2 (included)
Charger	DC18RC fast charger
Cycle time	7s
Tool height (without battery)	34cm
Maintains time	10000

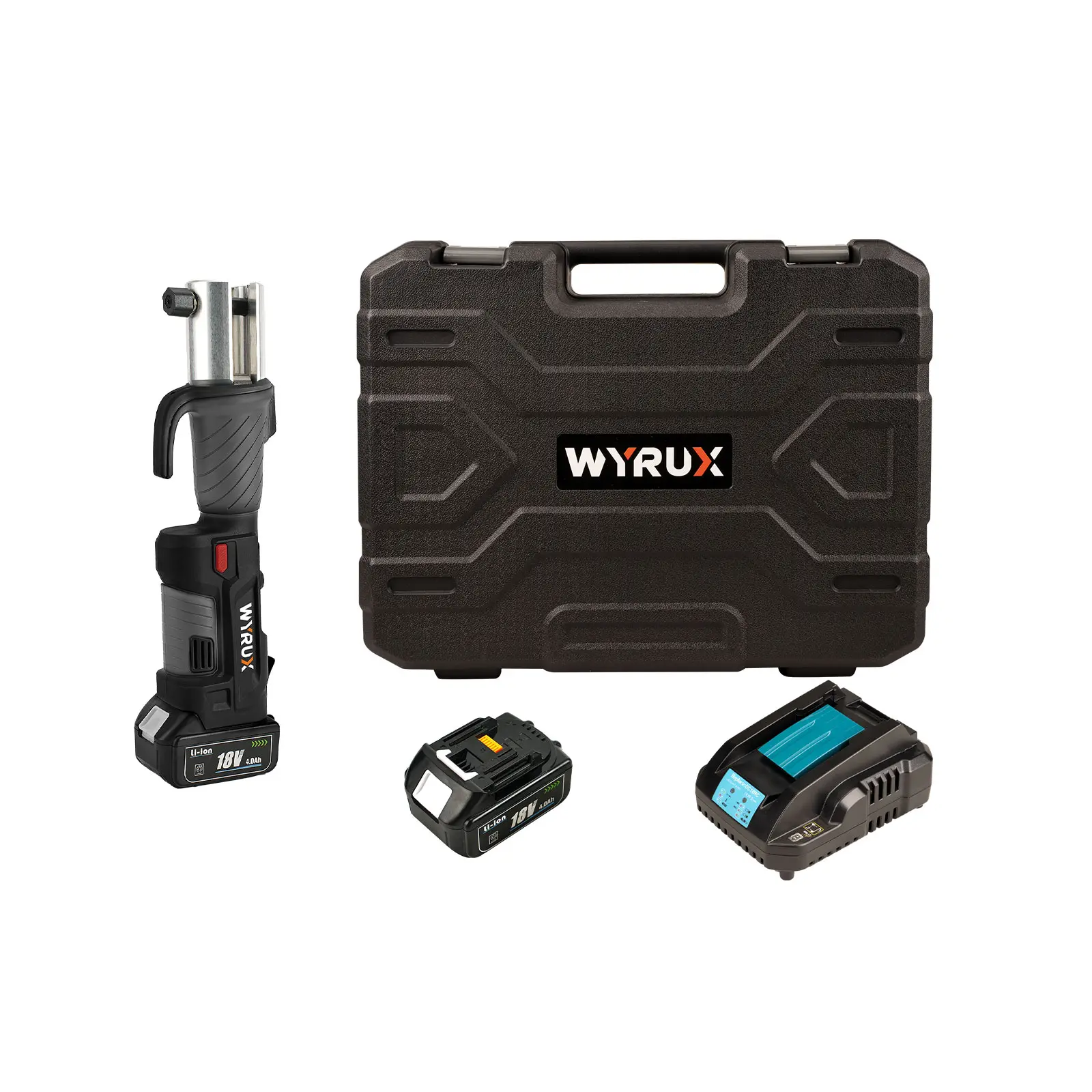

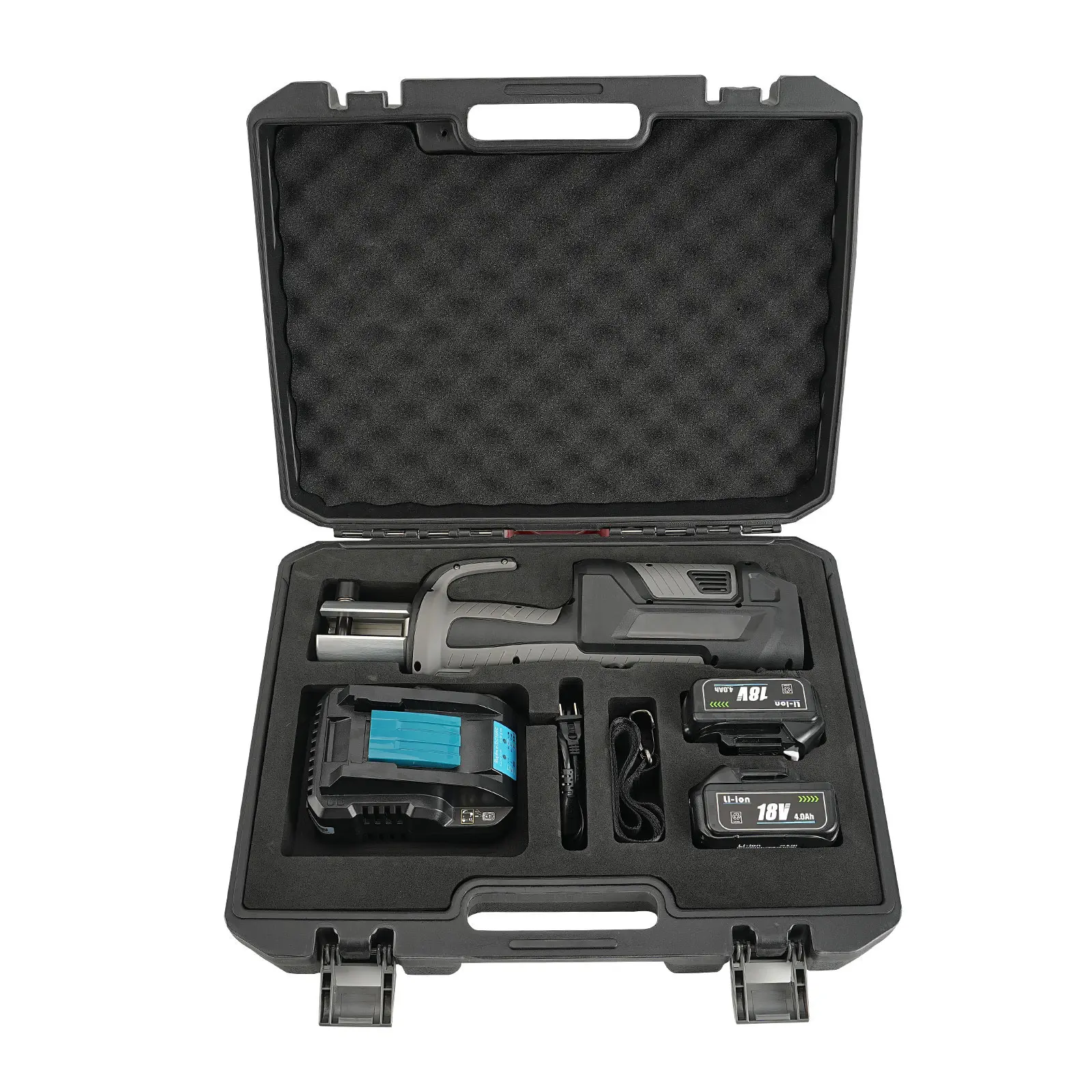

Package Includes

SM-1550B press tool × 1
18V 4.0Ah Li-ion battery × 2
DC18RC charger × 1
Carrying case × 1
O rings × 1
Shoulder belt × 1

Jaws

M profile jaws

15 / 18 / 22 / 28 / 35 / 42 / 54 mm

V profile jaws

15 / 18 / 22 / 28 / 35 / 42 / 54 mm

RLS profile jaws

1/4″ / 3/8″ / 1/2″ / 5/8″ / 3/4″ / 7/8″ / 1-1/8″

Vus jaws

1/2″ / 3/4″ / 1″ / 1-1/4″ / 1-1/2″ / 2″

Megapress jaws

1/2″ / 3/4″ / 1″ / 1-1/4″ / 1-1/2″ / 2″

Angle jaws (M profile)

15 / 18 / 22 / 28 / 35 / 42 / 54 mm

Angle jaws (V profile)

15 / 18 / 22 / 28 / 35 / 42 / 54 mm

Pressing units SM-1550B

Fit for the future with the new generation

The world of pressing technology has developed rapidly in recent years and WYRUX is at the forefront of these innovations. As a pioneer in the field of pressing technology, we develop advanced solutions that revolutionise your day-to-day work. One example of this is the SM-1550B crimping machines. These pressing devices available as a battery-powered press machine, set new standards in terms of performance, handling and efficiency.

What characterises the SM-1550B pressing machine

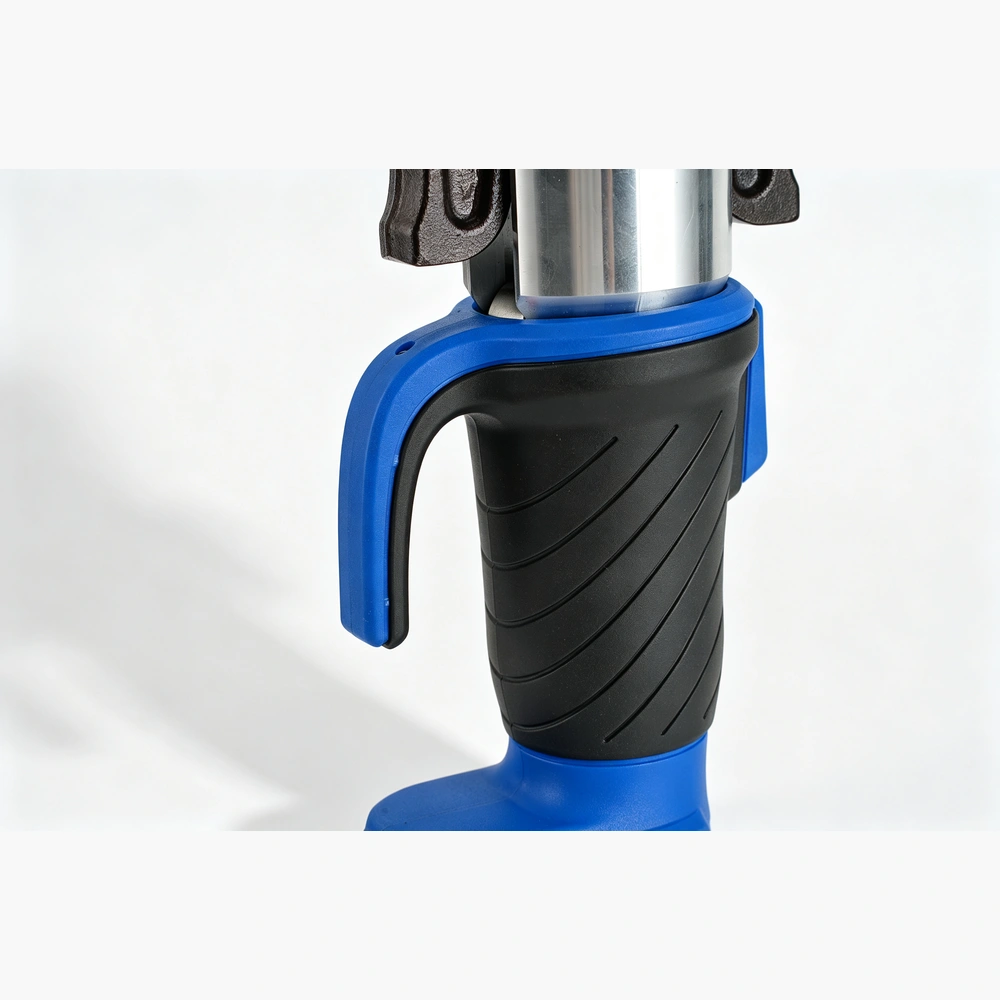

The WYRUX SM-1550B pressing machines are among the most modern pressing machines up to 110 mm on the market. The SM-1550B is a battery-powered pressing machine that impresses with its brushless motor technology. The lower weight compared to the previous model and the optimised design make the pressing device even easier to handle and make it easier for installers to work overhead. The pressing machines also score points in difficult lighting conditions thanks to the pressing point lighting. The innovative brushless motor technology in the WYRUX SM-1550B enables up to 40 % more joints per battery charge compared to its predecessor. This motor technology significantly reduces the maintenance requirements for the entire pressing tool.

Possible applications for the SM-1550B pressing units

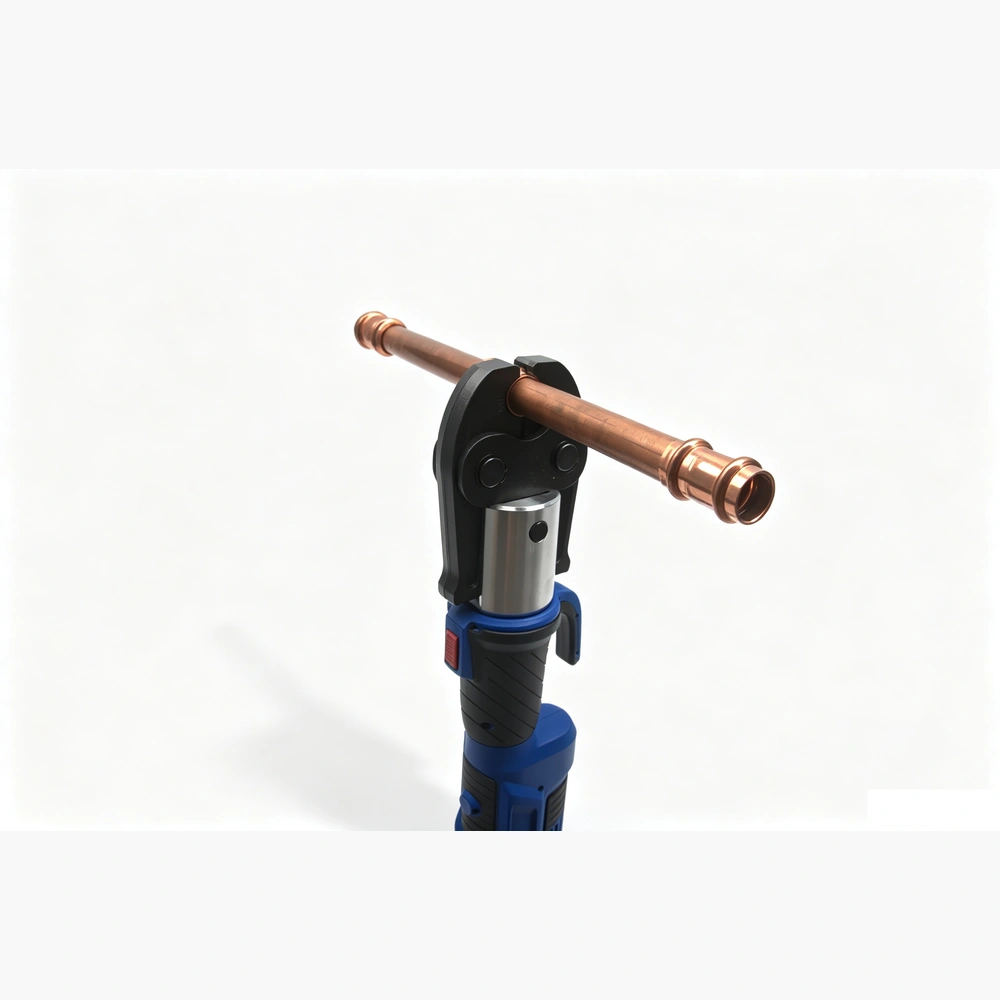

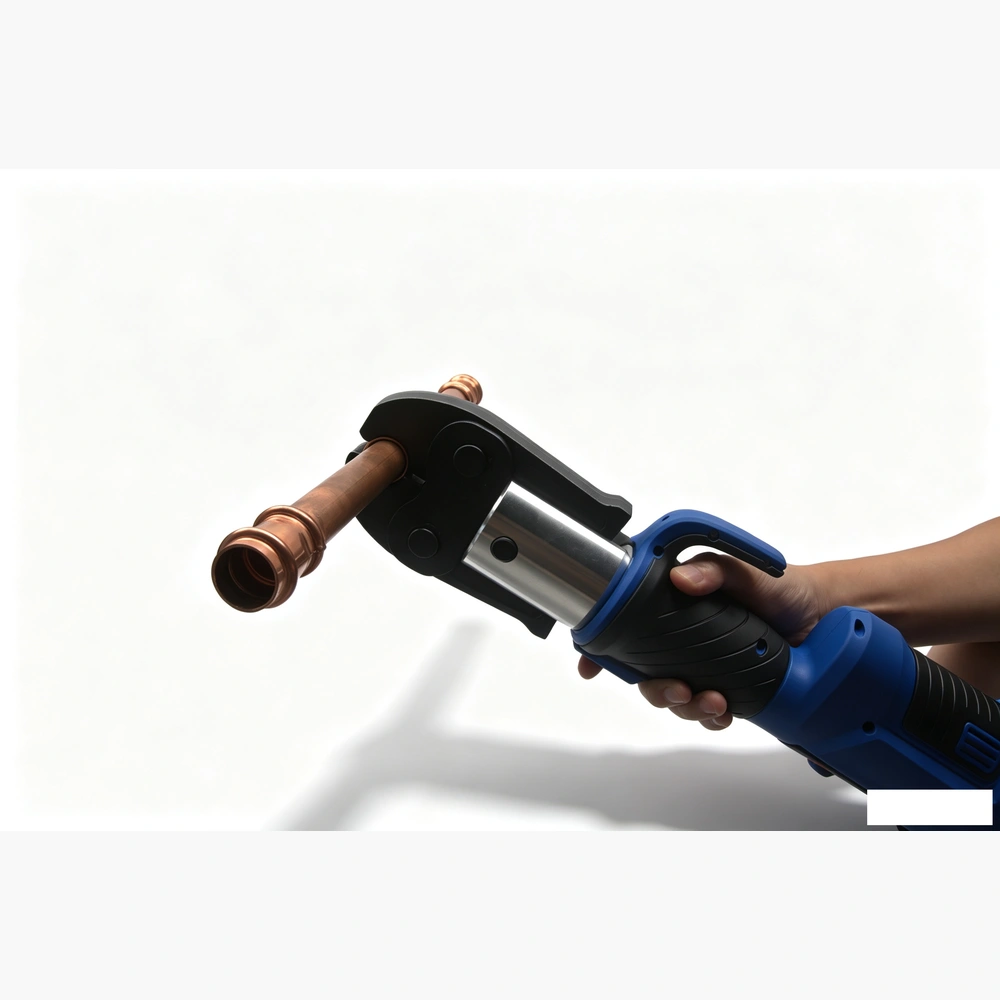

The WYRUX SM-1550B pressing devices are perfect for a wide range of applications in installation technology. They can be used for pressing metal pipe systems up to 54 mm and plastic pipe systems up to 75 mm. This makes them ideal for plumbing, heating and air conditioning installations as well as industrial applications.

Compatible pressing tools

The versatility of the SM-1550B pressing machine is enhanced by its compatibility with various pressing tools. These include

Pressing jaws: For the safe and reliable crimping of various pipe systems.

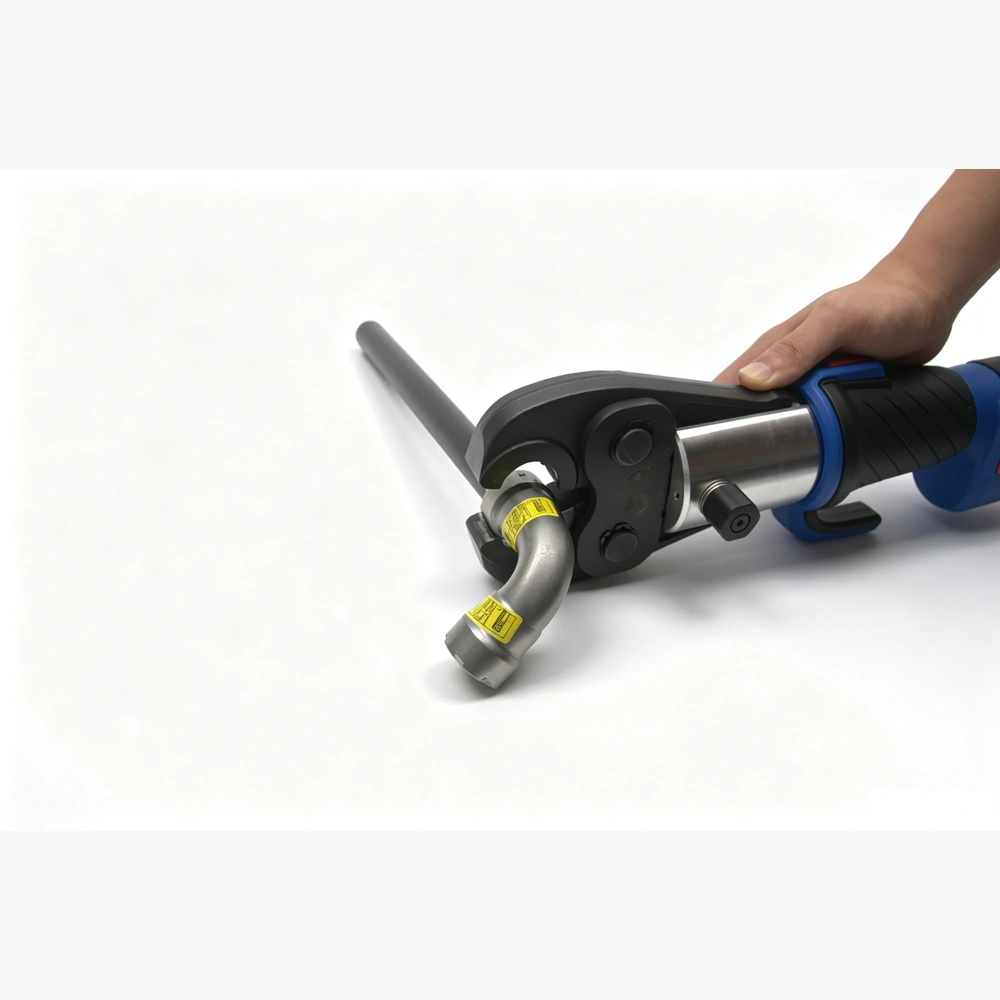

Pressing angle jaws: Ideal for hard-to-reach areas and large pipe diameters.

TWO years of warranty

WYRUX grants the full statutory warranty of 24 months or 30000 times on all new pressing devices and tools as well as other accessories. The warranty period always begins at the time of delivery and must be proven in case of doubt using purchase documents. Batteries and chargers are excluded. Here the warranty period is 12 months from the date of purchase.

During the warranty period, the warranty covers the repair of all damage or defects in the products that are due to material or manufacturing defects.

ONE year warranty extension for pressing devices, intermediate jaws and pressing slings

WYRUX grants a one-year extended warranty for all new pressing devices, intermediate jaws and pressing collars if they have been serviced at least every 12 months by WYRUX or a specialist workshop authorized by WYRUX.
