Name: ST-1930 Compact Press Tool for PEX & Copper Pipe
Brand: WYRUX
SKU: ST-1930

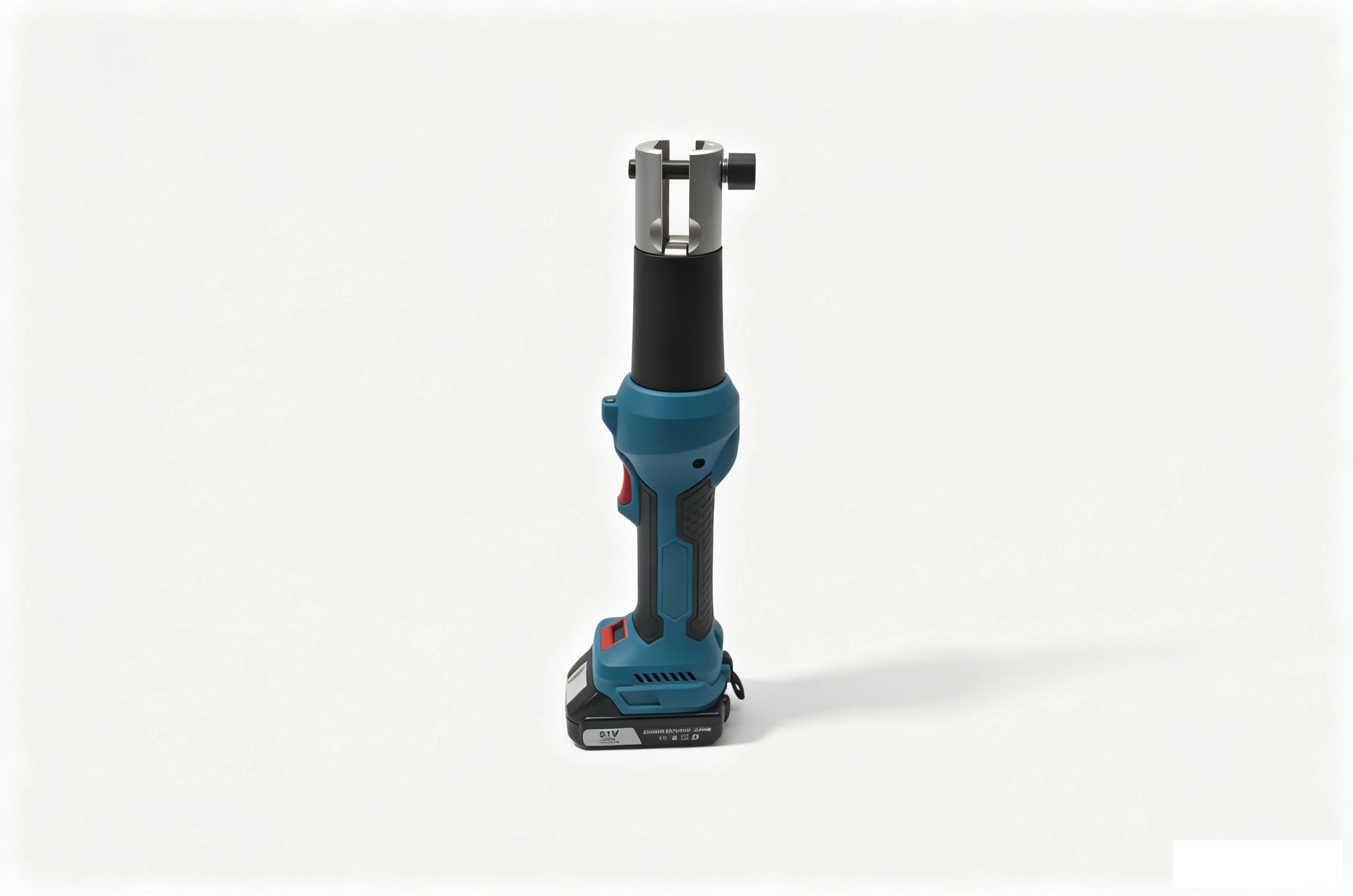

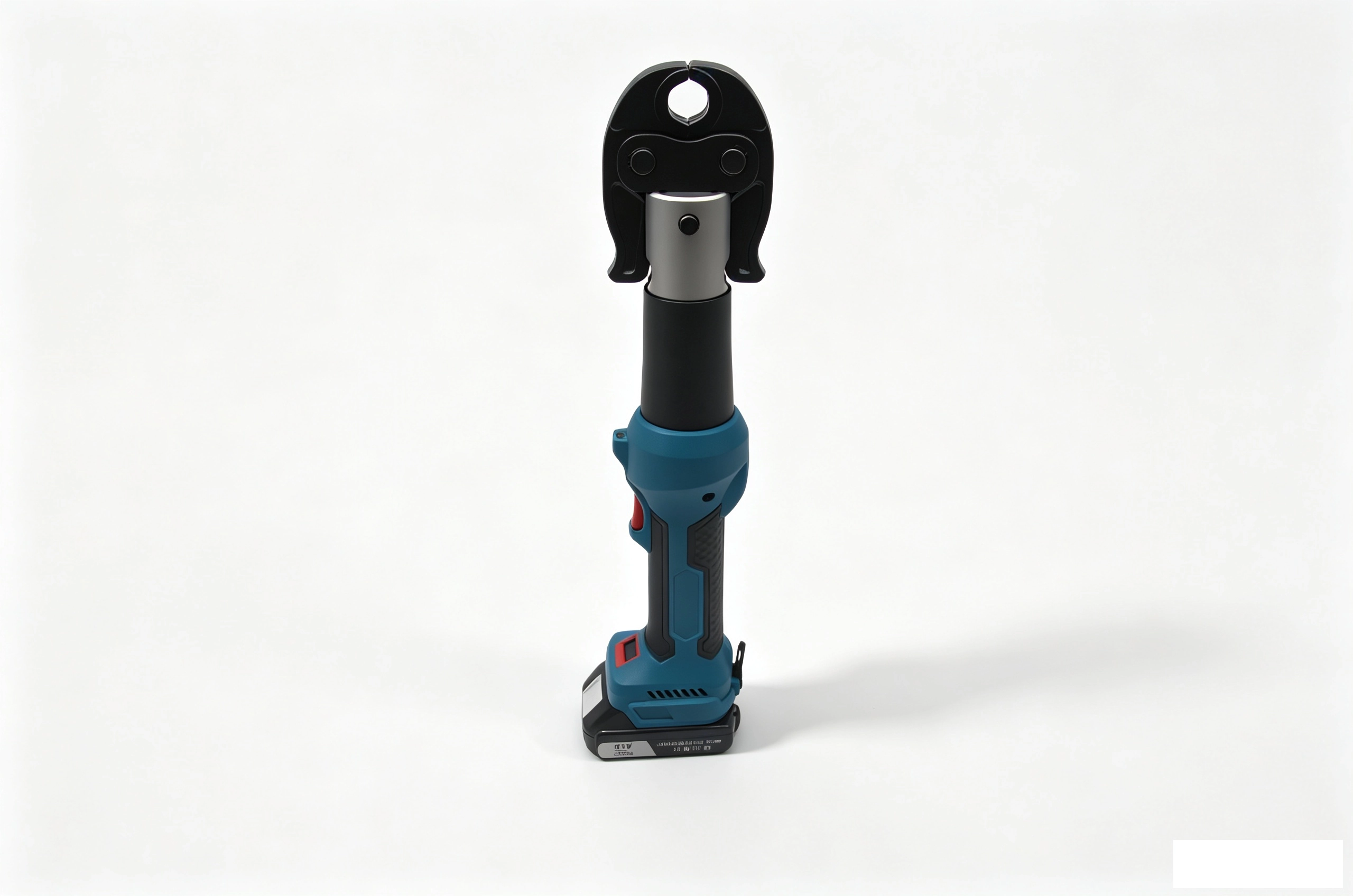

ST-1930 Compact Press Tool

12-28mm Stainless steel pipe
12-35mm(1/2″-1 3/8″) Copper pipe
16-40mm PEX&Multi-layer pipe

Featuring the latest technology, an updated structure, and extended lifetime. Slim and smart, with an in-line ergonomic grip

Press Tool Catalogue 2026

Motor type: Brush motor

19kN compact press tool

Specifications

Model	ST-1930
Tool type	Compact press tool
Output force	19 kN
Stroke	30mm
Tool weight (without battery)	2kg
Battery capacity	2.5 Ah × 2 (included)
Cycle time	3s
Tool height (without battery)	37cm

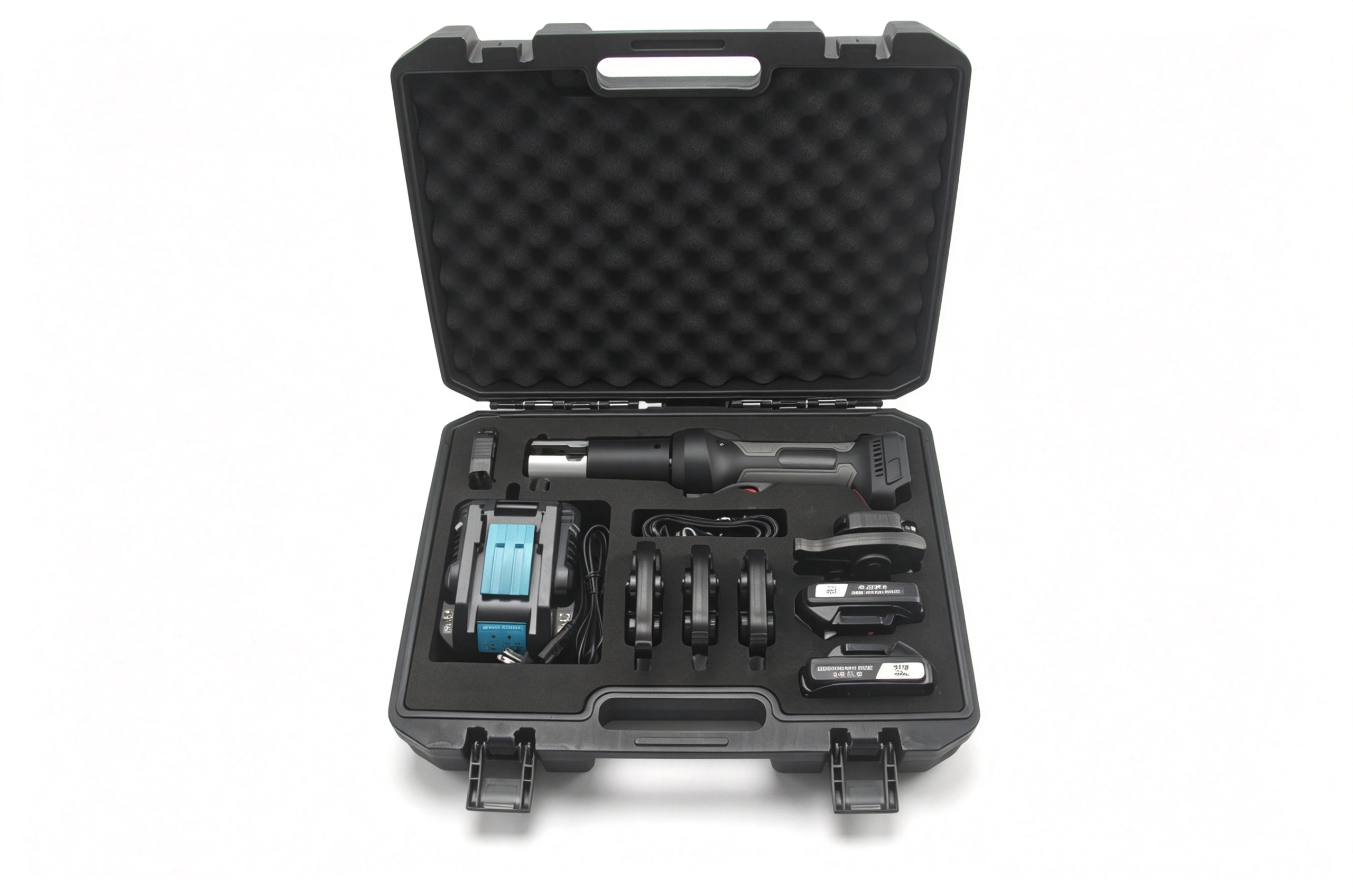

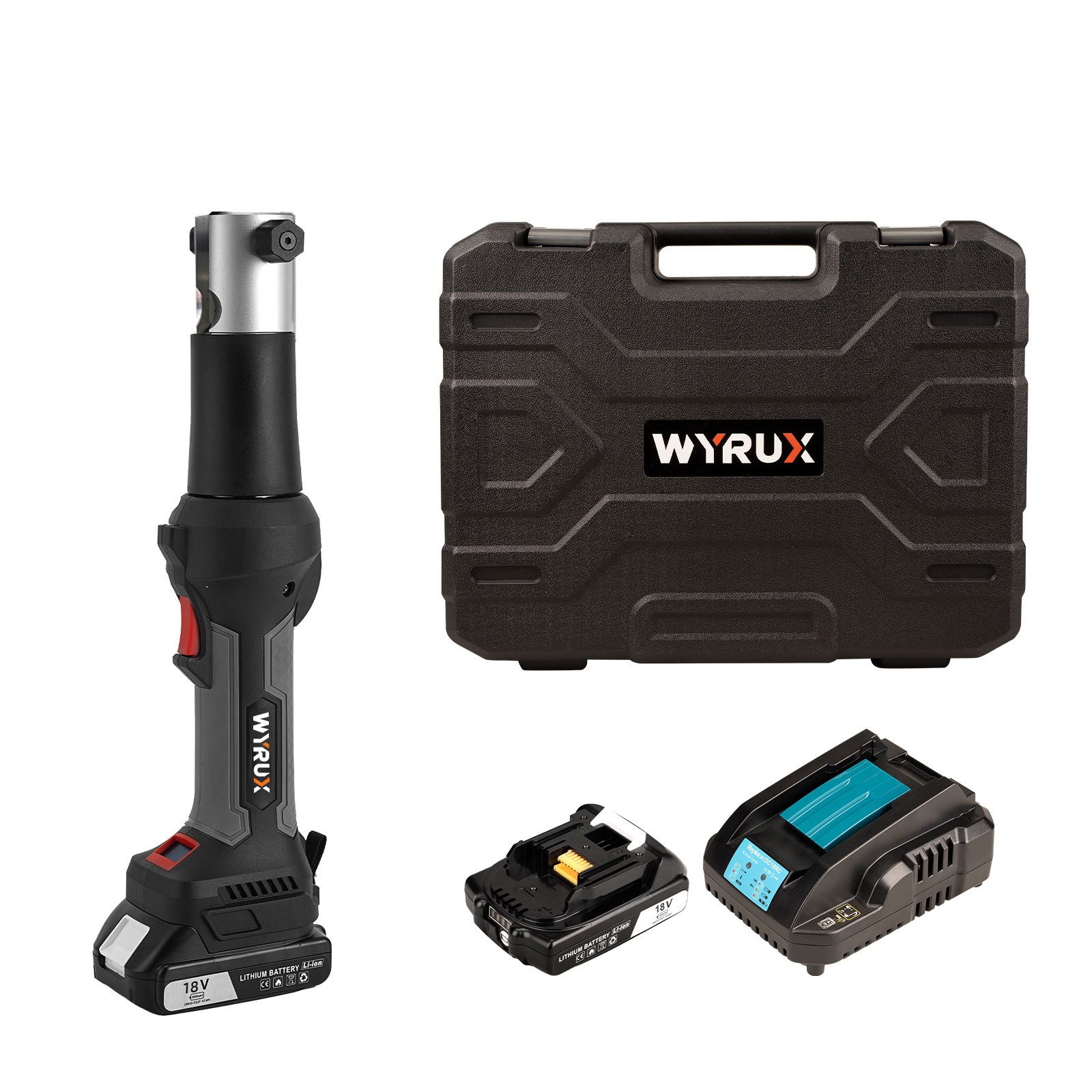

Package Includes

ST-1930 press tool × 1
2.5Ah Li-ion battery × 2
Charger × 1
Carrying case × 1
O rings × 1
Shoulder belt × 1

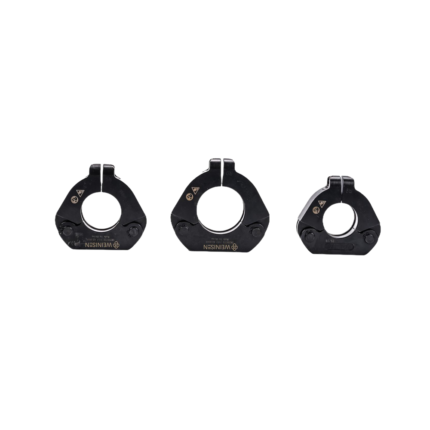

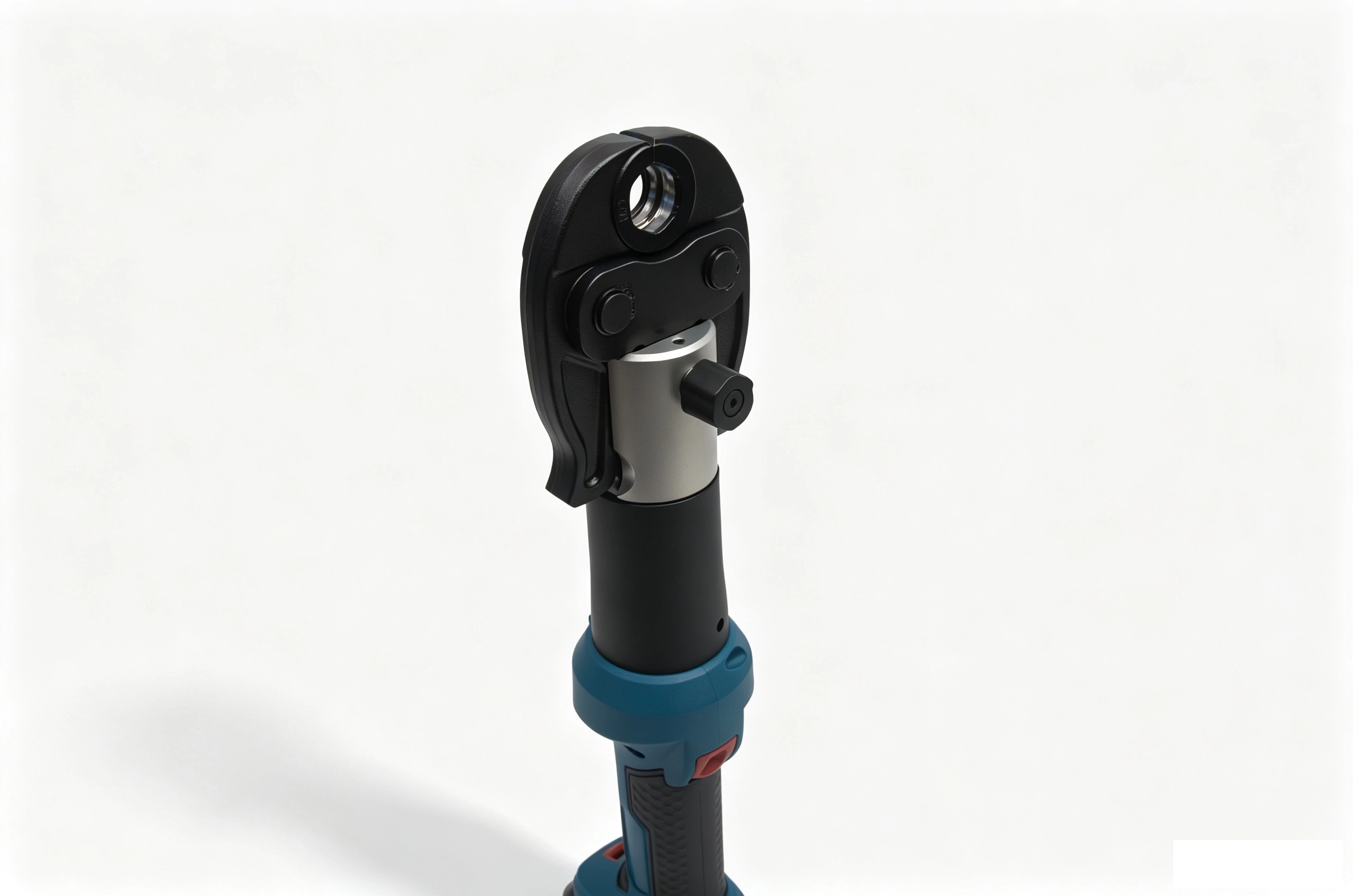

Jaws

V profile jaws

15 mm – 1.2kg

18 mm – 1.2kg

22 mm – 1.2kg

28 mm – 1.3kg

35 mm – 1.3kg

M profile jaws

15 mm – 1.2kg

18 mm – 1.2kg

22 mm – 1.2kg

28 mm – 1.3kg

35 mm – 1.3kg

TH profile jaws

th16 – 1.2kg

th20 – 1.3kg

th26 – 1.4kg

th32 – 1.5kg

U profile jaws

u16 – 1.2kg

u20 – 1.2kg

u25 – 1.3kg

u32 – 1.4kg

SV profile jaws

13 mm – 1.2kg

20 mm – 1.2kg

25 mm – 1.2kg

RLS profile jaws

1/4″ – 1.2kg

3/8″ – 1.2kg

1/2″ – 1.2kg

5/8″ – 1.3kg

3/4″ – 1.3kg

7/8″ – 1.3kg

1-1/8″ – 1.3kg

Angle jaws (M profile)

15 mm – 0.48kg

18 mm – 0.47kg

22 mm – 0.47kg

28 mm – 0.68kg

35 mm – 0.64kg

Angle jaws (V profile)

15 mm – 0.48kg

18 mm – 0.47kg

22 mm – 0.47kg

28 mm – 0.68kg

35 mm – 0.64kg

ST-1930 Compact Press Tool — Latest Technology, Extended Lifetime, Slim In-Line Design

The ST-1930 is a compact press tool engineered with an updated internal structure and the latest drive technology, delivering extended service life in a slim, smart package. It presses stainless steel pipe 12–28 mm, copper pipe 12–35 mm (1/2″–1 3/8″) and PEX/multilayer pipe 16–40 mm with an in-line ergonomic grip.

Highlights of the ST-1930

Updated structure and latest technology — refinements focused on durability and cycle consistency.

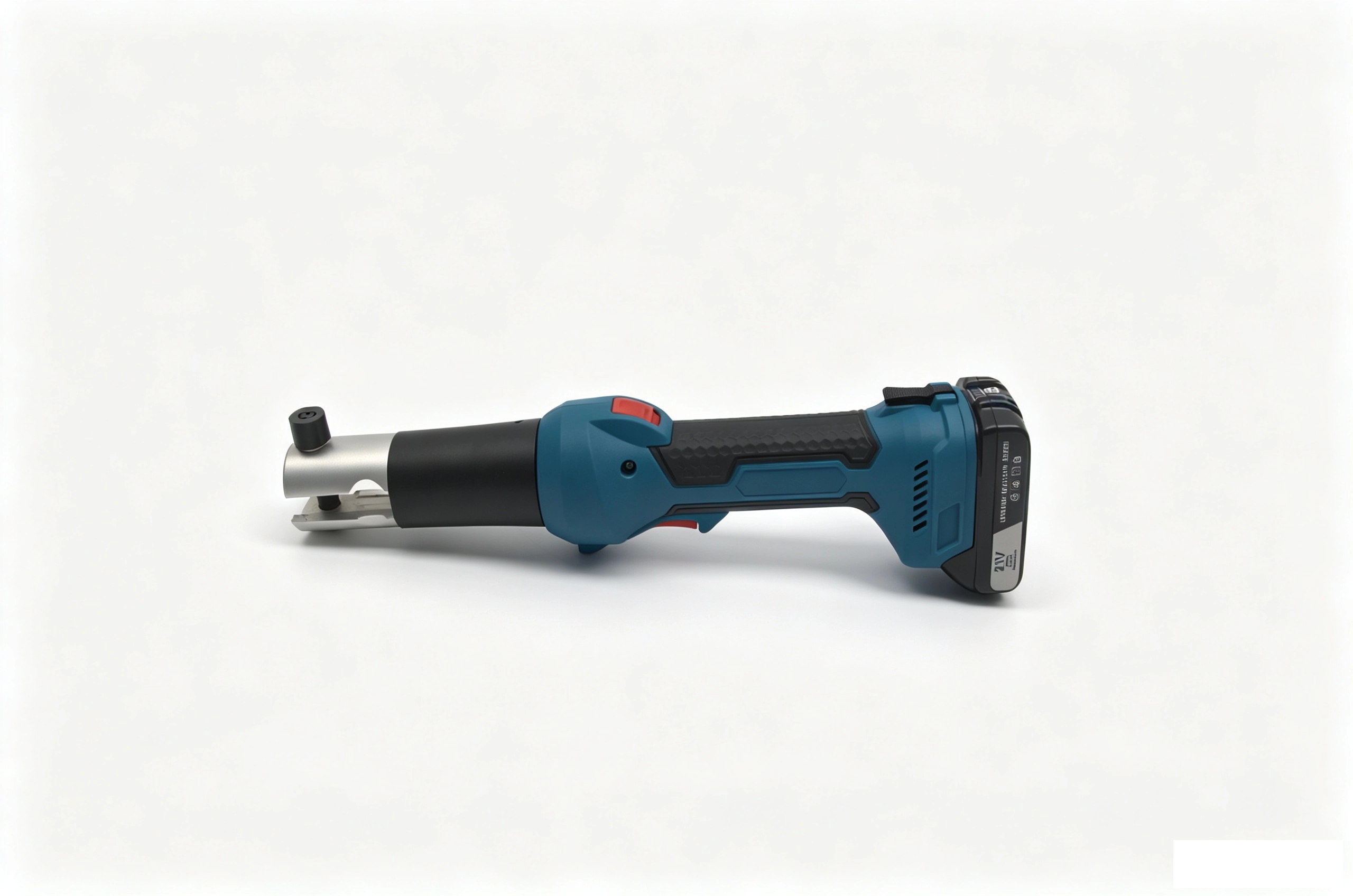

Slim and smart design: narrower body profile that fits between studs and behind panels.

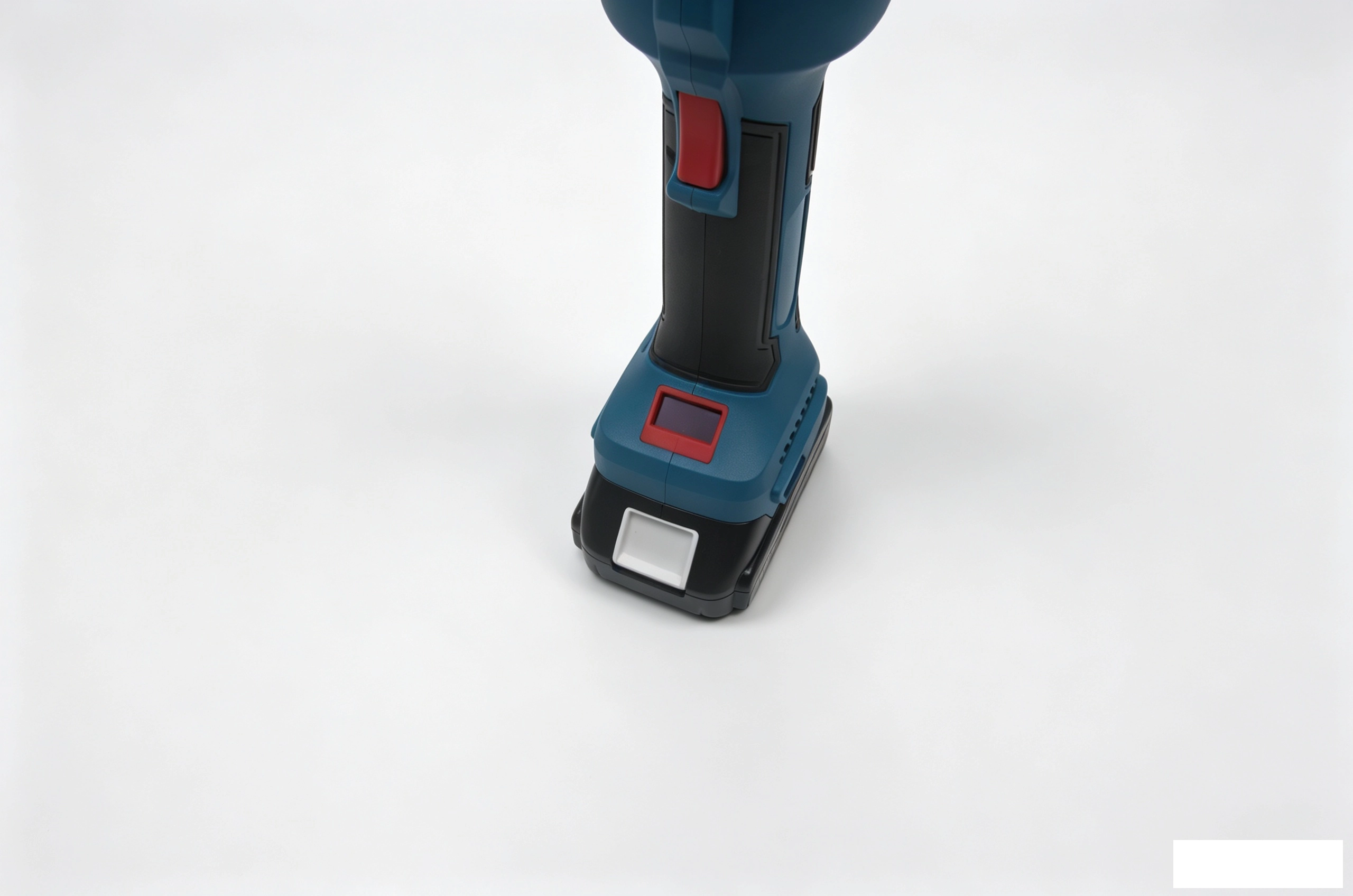

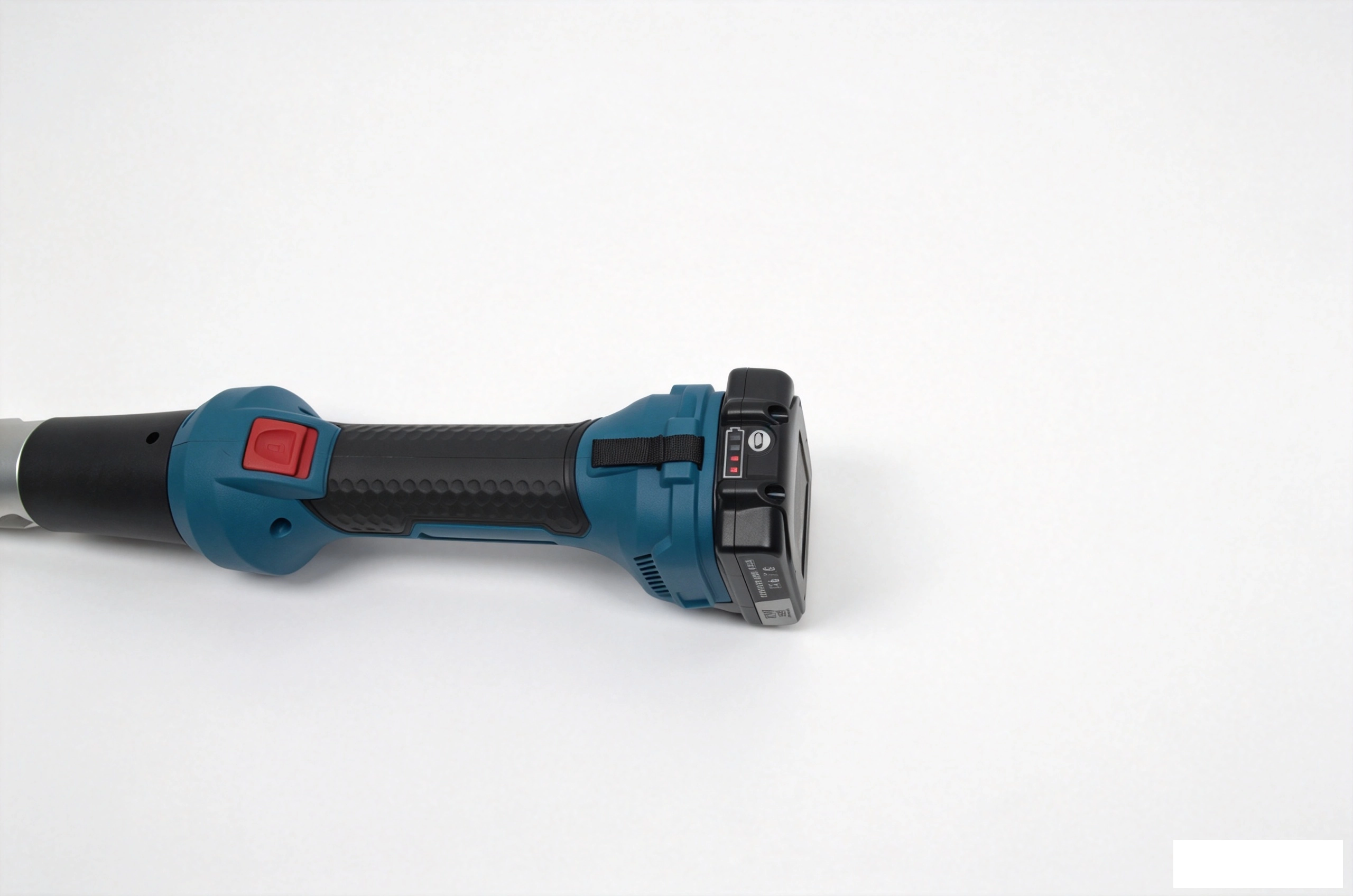

In-line ergonomic grip for balanced, comfortable one-hand operation.
Full range coverage: stainless 12–28 mm, copper 12–35 mm, PEX and multilayer 16–40 mm.

T Version: 0.3 kg Lighter Than the SM Series

The T versions were re-engineered rather than re-badged. The ST-1930 comes in at 2 kg without battery against 2.3 kg for the SM-1930 — 0.3 kg less in the hand, which is the difference that shows up on a ladder or above your head. Cycle time drops to 3 seconds, so every joint takes a second less and the tool spends less time running.

The housing and grip were reshaped in the same pass: a smaller, lighter hold that stays balanced when the tool is worked one-handed, and a layout that is easier to keep level on overhead runs. Same 19 kN output, same jaw range, less weight to carry up and hold there.

Built for the Installer Who Presses Every Day

The ST-1930 suits professional plumbing and heating installers who need a dependable daily press tool. The combination of an updated, long-life drive and a slim body means fewer interruptions and less fatigue on the jobs that generate your income.

Quality Assurance

Heat-treated alloy construction, precision-machined pressing surfaces and 100% factory function testing precede a two-year or 30,000-cycle warranty. Ask about compatible press jaws for your fitting brand, or order with a matched kit for immediate work.

Which Jaw Set Do You Need?

Press fittings vary by brand and profile, and the jaw is what makes the system work. Confirm your fitting profile (M, U, V, TH or ring) before ordering so the ST-1930 arrives ready for your first joint. For multi-profile work, keep a second jaw set in the van and swap in seconds.

The ST-1930 is manufactured in-house from heat-treated alloy components, 100% function-tested before shipping, and backed by a two-year or 30,000-cycle warranty. Contact us for a quote that includes your local pipe sizes and jaw profiles.

TWO years of warranty

WYRUX grants the full statutory warranty of 24 months or 30000 times on all new pressing devices and tools as well as other accessories. The warranty period always begins at the time of delivery and must be proven in case of doubt using purchase documents. Batteries and chargers are excluded. Here the warranty period is 12 months from the date of purchase.

During the warranty period, the warranty covers the repair of all damage or defects in the products that are due to material or manufacturing defects.

ONE year warranty extension for pressing devices, intermediate jaws and pressing slings

WYRUX grants a one-year extended warranty for all new pressing devices, intermediate jaws and pressing collars if they have been serviced at least every 12 months by WYRUX or a specialist workshop authorized by WYRUX.
