Name: ST-1930B Compact Press Tool - WYRUX Tools
Brand: WYRUX
SKU: ST-1930B

ST-1930B Compact Press Tool

12-28mm Stainless steel pipe
12-35mm(1/2″-1 3/8″) Copper pipe
16-40mm PEX&Multi-layer pipe

Featuring the latest technology, an updated structure, and extended lifetime. Slim and smart, with an in-line ergonomic grip

Press Tool Catalogue 2026

Motor type: Brushless motor

19kN compact press tool

Specifications

Model	ST-1930B
Tool type	Compact press tool
Output force	19 kN
Stroke	30mm
Tool weight (without battery)	2kg
Battery capacity	2.5 Ah × 2 (included)
Cycle time	3s
Tool height (without battery)	37cm

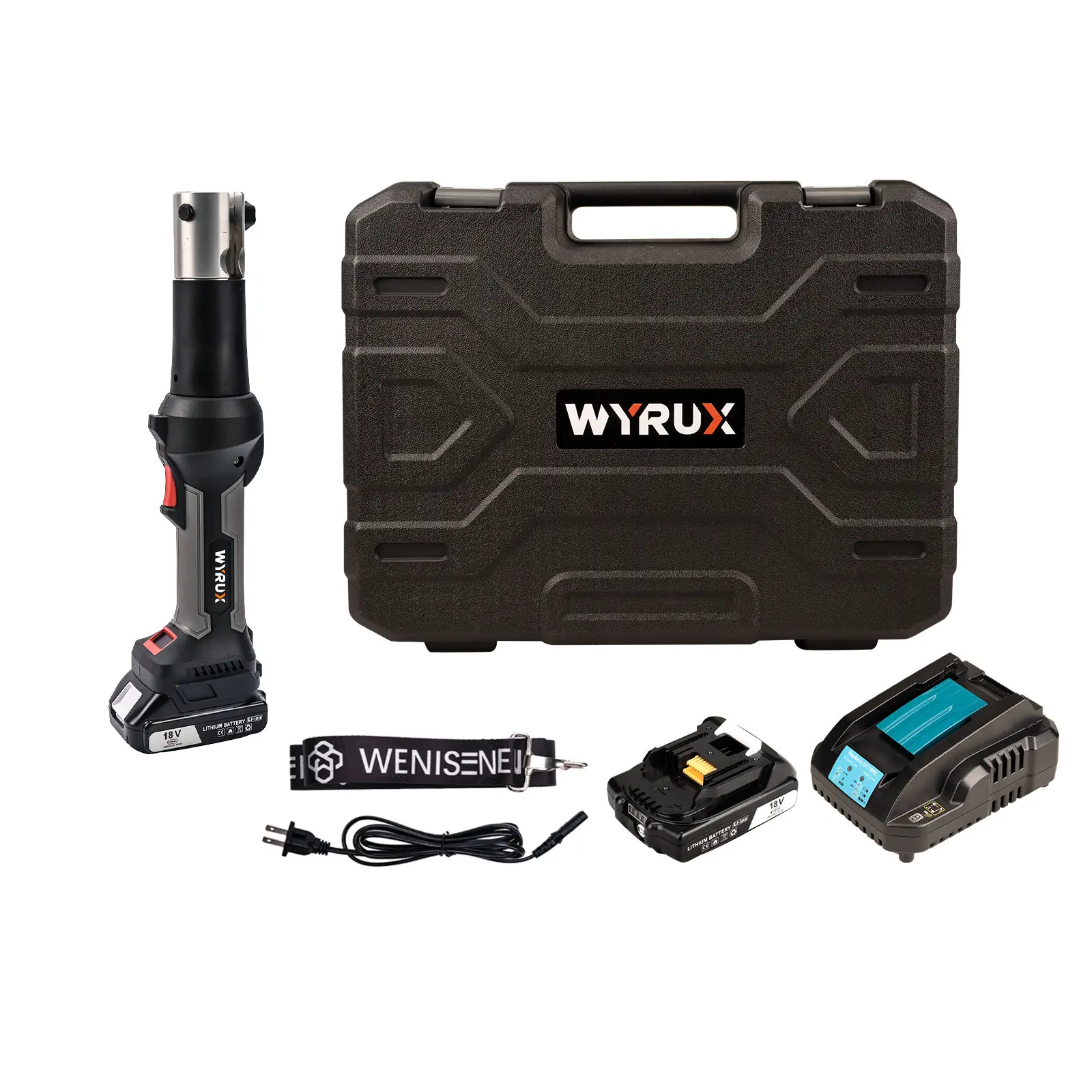

Package Includes

ST-1930B press tool × 1
2.5Ah Li-ion battery × 2
Charger × 1
Carrying case × 1
O rings × 1
Shoulder belt × 1

Jaws

V profile jaws

15 mm – 1.2kg

18 mm – 1.2kg

22 mm – 1.2kg

28 mm – 1.3kg

35 mm – 1.3kg

M profile jaws

15 mm – 1.2kg

18 mm – 1.2kg

22 mm – 1.2kg

28 mm – 1.3kg

35 mm – 1.3kg

TH profile jaws

th16 – 1.2kg

th20 – 1.3kg

th26 – 1.4kg

th32 – 1.5kg

U profile jaws

u16 – 1.2kg

u20 – 1.2kg

u25 – 1.3kg

u32 – 1.4kg

SV profile jaws

13 mm – 1.2kg

20 mm – 1.2kg

25 mm – 1.2kg

RLS profile jaws

1/4″ – 1.2kg

3/8″ – 1.2kg

1/2″ – 1.2kg

5/8″ – 1.3kg

3/4″ – 1.3kg

7/8″ – 1.3kg

1-1/8″ – 1.3kg

Angle jaws (M profile)

15 mm – 0.48kg

18 mm – 0.47kg

22 mm – 0.47kg

28 mm – 0.68kg

35 mm – 0.64kg

Angle jaws (V profile)

15 mm – 0.48kg

18 mm – 0.47kg

22 mm – 0.47kg

28 mm – 0.68kg

35 mm – 0.64kg

WYRUX ST-1930B Compact Press Tool — the latest-generation 19 kN body, 0.3 kg lighter than the SM version

The ST-1930B is the current design generation of the 19 kN compact press tool. At 2 kg without battery it is 0.3 kg lighter than the SM-1930B it sits beside, and its 3-second cycle is a second quicker per joint. Output force is unchanged at 19 kN, so the pipe range and jaw family carry over directly.

The T Design Changes

Weight is the headline. Removing 0.3 kg from a 2.3 kg tool changes how it behaves at arm’s length: the body is easier to balance one-handed, and it is less tiring on overhead work where the tool has to be held up while you position the jaw. The grip was reshaped in the same generation to sit more lightly in the hand, and the housing reworked around it, so the tool stays comfortable across a full day of pressing rather than a few joints.

The drive is brushless, as on the B version of the SM family — no carbon brushes to renew. Ask us about jaw profiles, or order with a matched kit.

TWO years of warranty

WYRUX grants the full statutory warranty of 24 months or 30000 times on all new pressing devices and tools as well as other accessories. The warranty period always begins at the time of delivery and must be proven in case of doubt using purchase documents. Batteries and chargers are excluded. Here the warranty period is 12 months from the date of purchase.

During the warranty period, the warranty covers the repair of all damage or defects in the products that are due to material or manufacturing defects.

ONE year warranty extension for pressing devices, intermediate jaws and pressing slings

WYRUX grants a one-year extended warranty for all new pressing devices, intermediate jaws and pressing collars if they have been serviced at least every 12 months by WYRUX or a specialist workshop authorized by WYRUX.
