Name: SM-1930B Compact Press Tool for PEX & Copper Pipe
SKU: ST-1930 -B-3-1-2-1-1

Description

Motor type: Brushless motor

19kN compact press tool

Specifications

Model	SM-1930B
Tool type	Compact press tool
Output force	19 kN
Stroke	30mm
Tool weight (without battery)	2.3kg
Battery capacity	2.5 Ah × 2 (included)
Cycle time	4s
Tool height (without battery)	33.5cm

Jaws

V profile jaws

15 mm – 1.2kg

18 mm – 1.2kg

22 mm – 1.2kg

28 mm – 1.3kg

35 mm – 1.3kg

M profile jaws

15 mm – 1.2kg

18 mm – 1.2kg

22 mm – 1.2kg

28 mm – 1.3kg

35 mm – 1.3kg

TH profile jaws

th16 – 1.2kg

th20 – 1.3kg

th26 – 1.4kg

th32 – 1.5kg

U profile jaws

u16 – 1.2kg

u20 – 1.2kg

u25 – 1.3kg

u32 – 1.4kg

SV profile jaws

13 mm – 1.2kg

20 mm – 1.2kg

25 mm – 1.2kg

RLS profile jaws

1/4″ – 1.2kg

3/8″ – 1.2kg

1/2″ – 1.2kg

5/8″ – 1.3kg

3/4″ – 1.3kg

7/8″ – 1.3kg

1-1/8″ – 1.3kg

Angle jaws (M profile)

15 mm – 0.48kg

18 mm – 0.47kg

22 mm – 0.47kg

28 mm – 0.68kg

35 mm – 0.64kg

Angle jaws (V profile)

15 mm – 0.48kg

18 mm – 0.47kg

22 mm – 0.47kg

28 mm – 0.68kg

35 mm – 0.64kg

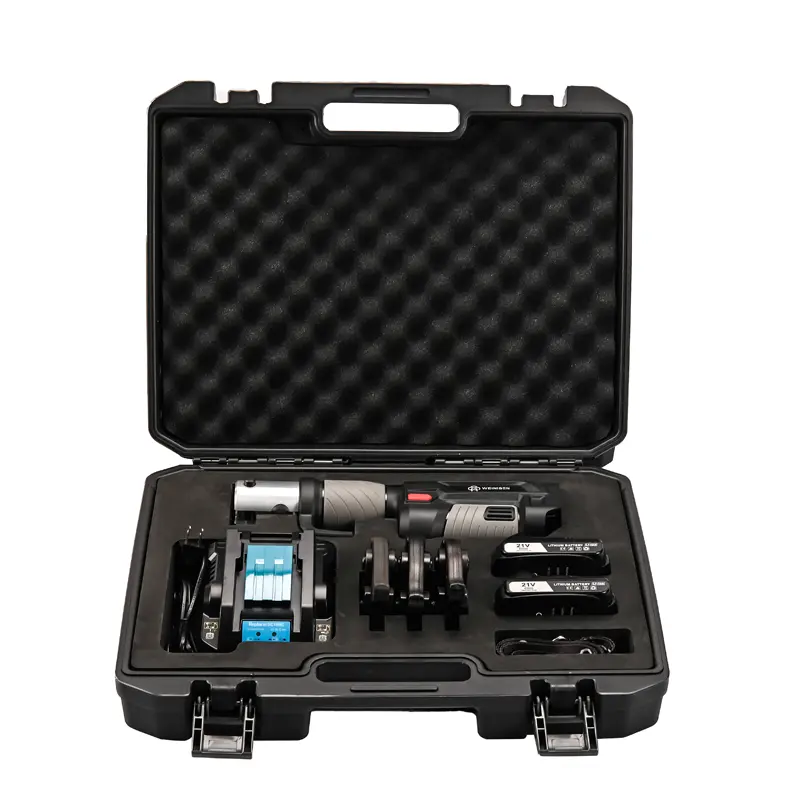

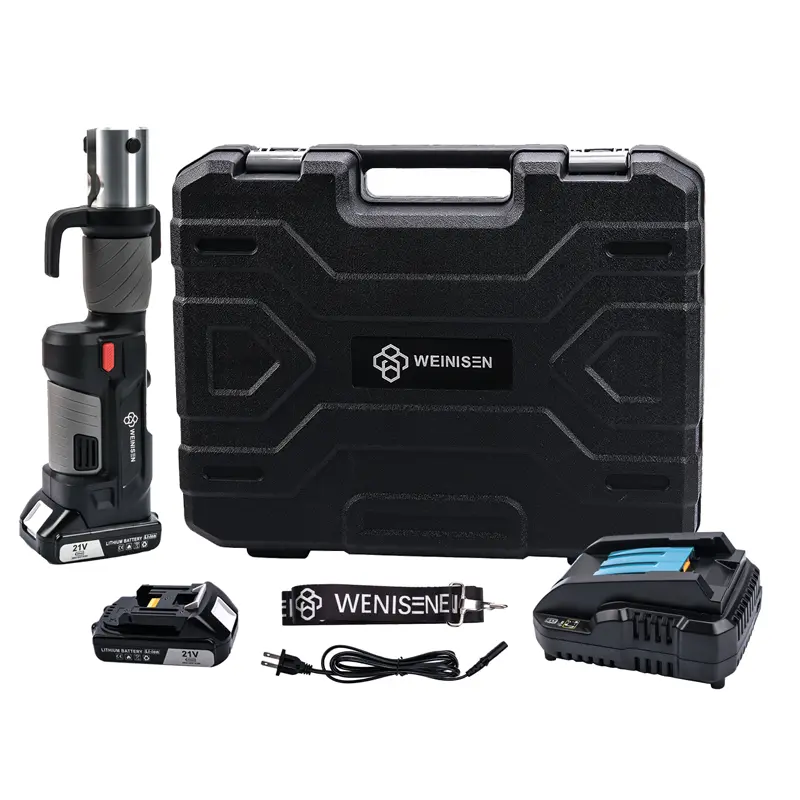

Package Includes

SM-1930B press tool × 1
2.5Ah Li-ion battery × 2
Charger × 1
Carrying case × 1
O rings × 1
Shoulder belt × 1

SM-1930B Compact Press Tool — The Updated 19 kN-Class Press Tool for Daily Pipework

The SM-1930B is the latest version of the compact press tool family, updated for longer service life and smoother operation. It presses stainless steel pipe from 12–28 mm, copper from 12–35 mm and PEX/multilayer pipe from 16–40 mm, with an in-line ergonomic grip that keeps heavy daily pressing comfortable.

What Changed in the B Version

Refined drive and release system for smoother, more consistent press cycles.
Same trusted pressing range: stainless 12–28 mm, copper 12–35 mm, PEX and multilayer 16–40 mm.
In-line grip carried over from the original — the ergonomic layout installers already know.

Designed Around Real Pressing Work

Radiator loops, hot and cold water lines, floor heating manifolds — the SM-1930B covers the pipe sizes most common in residential and light commercial hydronics. Its compact body reaches into tight service spaces, and with the right jaw profile it works with fittings from all major press systems.

Manufacturing and Warranty

Built from heat-treated alloy components, precision-machined, 100% function-tested before shipping and covered by a two-year or 30,000-cycle warranty. Contact us for jaw compatibility lists or to order the SM-1930B with a matched jaw kit.

Service Notes for Long Life

Keep the jaw pivot and the tool body free of dust and moisture, and store the press tool in its case between jobs. With basic care the SM-1930B delivers the extended service life it was designed for — thousands of joints across stainless, copper and PEX installations before any servicing is needed.

If your fittings use a different press profile, the SM-1930B accepts the full compact-tool jaw range, so one tool body covers multiple systems. Every unit ships 100% function-tested with a two-year or 30,000-cycle warranty; ask about matched jaw kits and volume pricing for contractor fleets.
