ST-2430 Compact Press Tool
ST-2430 Compact Press Tool
- Up to 35mm Stainless steel pipe, Copper pipe
- Up to 40mm Plastic pipe，Multi-layer composite pipe
24kN Powerful output
MAX press 35mm stainless steel pipe
2.1KGS Portable and convenient
Model:
|
|---|
Description
Motor type: Brush motor
24kN compact press tool
Specifications
| Model | ST-2430 |
|---|---|
| Tool type | Compact press tool |
| Output force | 24 kN |
| Stroke | 30mm |
| Tool weight (without battery) | 2kg |
| Battery capacity | 2.5 Ah × 2 (included) |
| Cycle time | 3s |
| Tool height (without battery) | 37cm |
Package Includes

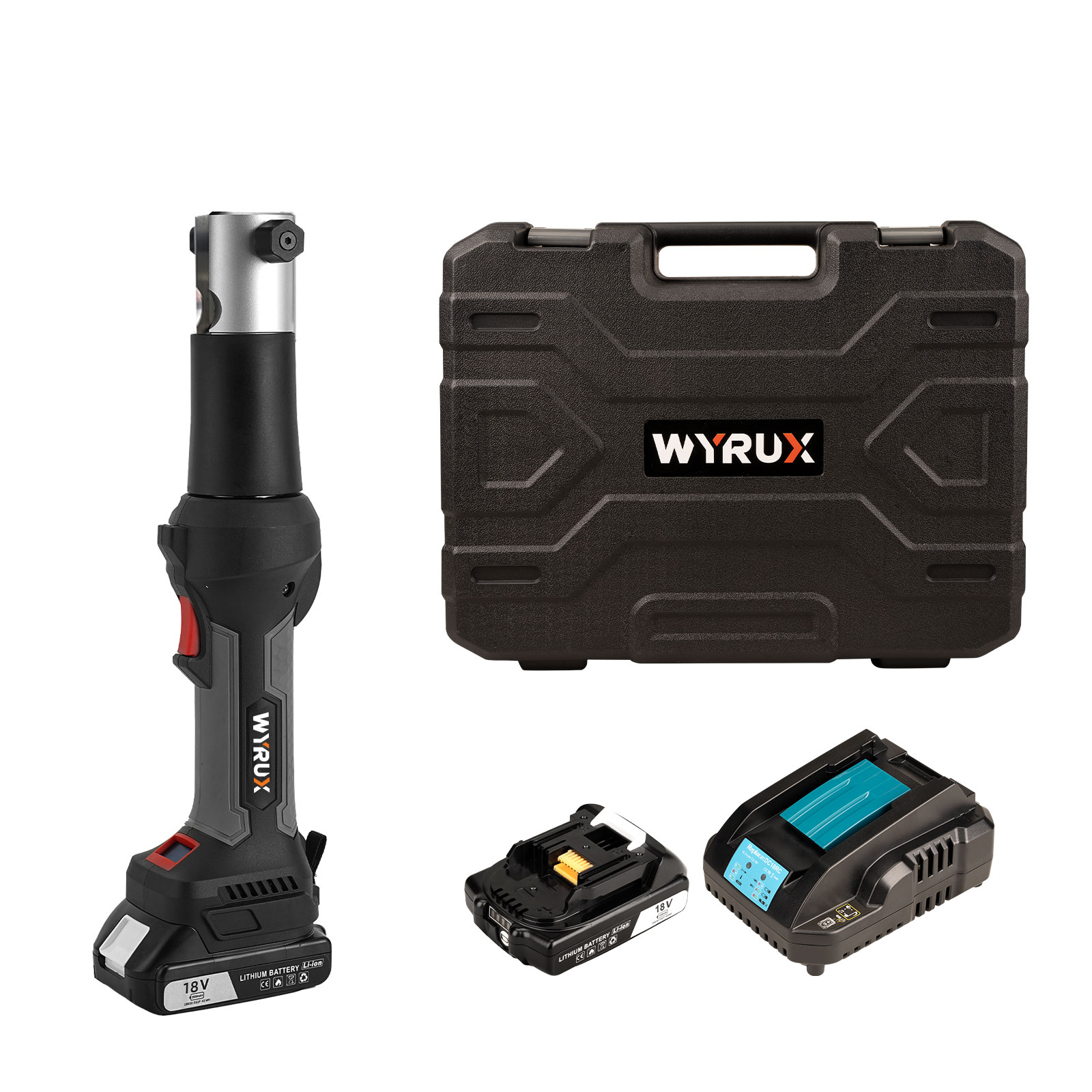

- ST-2430 press tool × 1
- 2.5Ah Li-ion battery × 2
- Charger × 1
- Carrying case × 1
- O rings × 1
- Shoulder belt × 1
Jaws
Propress jaws
1/2″ – 1.2kg
3/4″ – 1.2kg
1″ – 1.3kg
Pureflow jaws
3/8″ – 1.2kg
1/2″ – 1.2kg
5/8″ – 1.2kg
3/4″ – 1.1kg
1″ – 1.2kg
1-1/4″ – 1.2kg
1-1/2″ – 1.3kg
Megapress jaws
1/2″ – 1.2kg
3/4″ – 1.2kg
1″ – 1.3kg
RLS profile jaws
1/4″ – 1.2kg
3/8″ – 1.2kg
1/2″ – 1.2kg
5/8″ – 1.3kg
3/4″ – 1.3kg
7/8″ – 1.3kg
1-1/8″ – 1.3kg
Propress angle jaws
1/2″ – 0.48kg
3/4″ – 0.47kg
1″ – 0.68kg
1-1/4″ – 0.64kg
WYRUX ST-2430 Compact Press Tool — 24 kN output in a 2 kg body
The ST-2430 pairs the 24 kN force class with the lightest body in the range: 2 kg without battery, against 2.3 kg for the SM-2430 — 0.3 kg less to lift, aim and hold. A full press cycle takes 3 seconds, a second less than the SM, and the 30 mm stroke is unchanged.
What the Lighter Body Buys You
Weight matters most when the tool has to be held away from the body, and that is where the ST-2430 was aimed: one-handed pressing and work above shoulder height. Taking 0.3 kg out of the tool, and reshaping the grip so it sits lighter in the hand, is what makes those two jobs practical on a 24 kN tool rather than a fight with the tool’s own mass. The output is unchanged, so the jaw range and pipe coverage carry over — only the effort of holding it goes down.
Reviews (0)
Warranty
TWO years of warranty
WYRUX grants the full statutory warranty of 24 months or 30000 times on all new pressing devices and tools as well as other accessories. The warranty period always begins at the time of delivery and must be proven in case of doubt using purchase documents. Batteries and chargers are excluded. Here the warranty period is 12 months from the date of purchase.
During the warranty period, the warranty covers the repair of all damage or defects in the products that are due to material or manufacturing defects.
ONE year warranty extension for pressing devices, intermediate jaws and pressing slings
WYRUX grants a one-year extended warranty for all new pressing devices, intermediate jaws and pressing collars if they have been serviced at least every 12 months by WYRUX or a specialist workshop authorized by WYRUX.
