Name: ST-2430B Compact Press Tool - WYRUX Tools
Brand: WYRUX
SKU: ST-2430B

Description

Motor type: Brushless motor

24kN compact press tool

Specifications

Model	ST-2430B
Tool type	Compact press tool
Output force	24 kN
Stroke	30mm
Tool weight (without battery)	2kg
Battery capacity	2.5 Ah × 2 (included)
Cycle time	3s
Tool height (without battery)	37cm

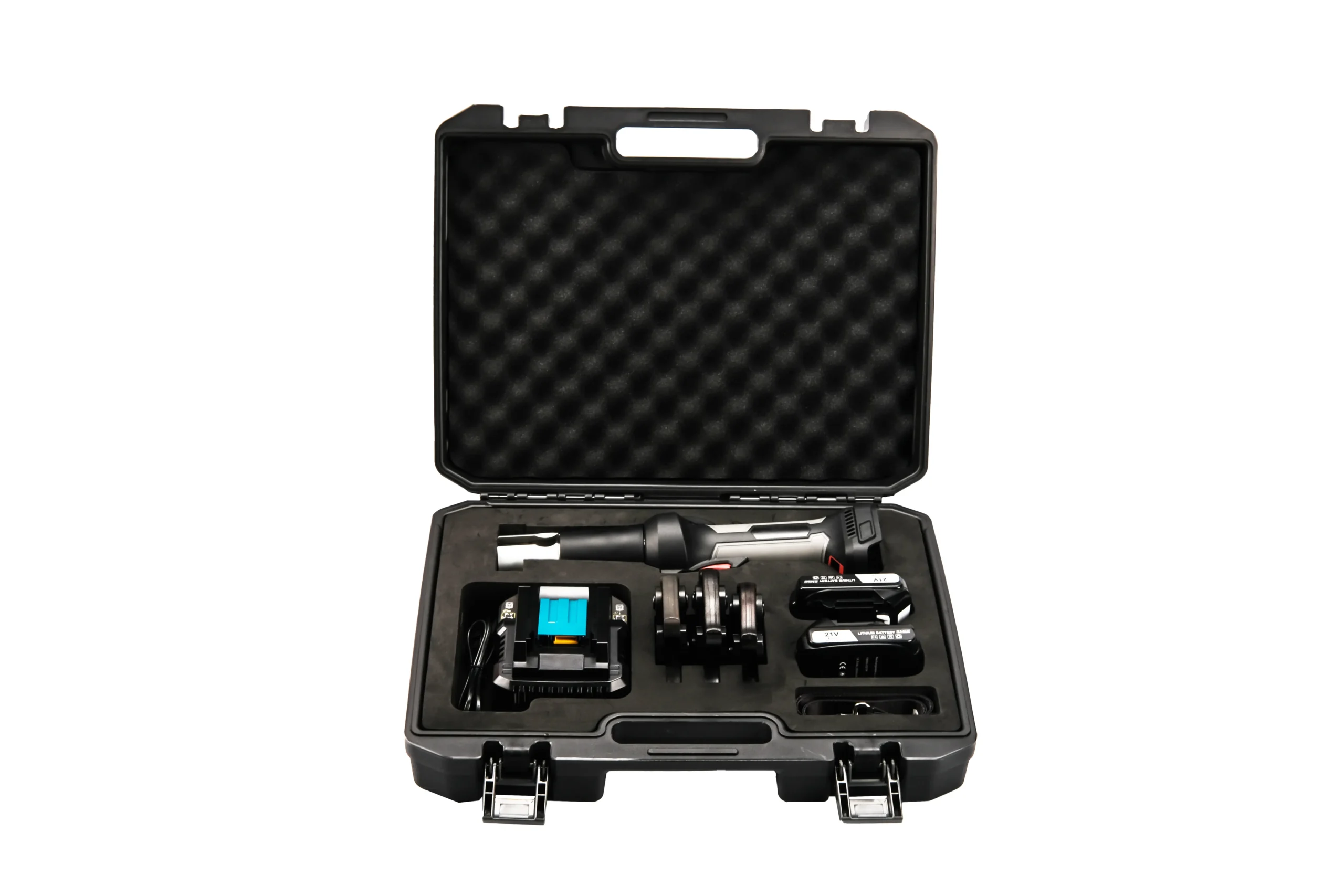

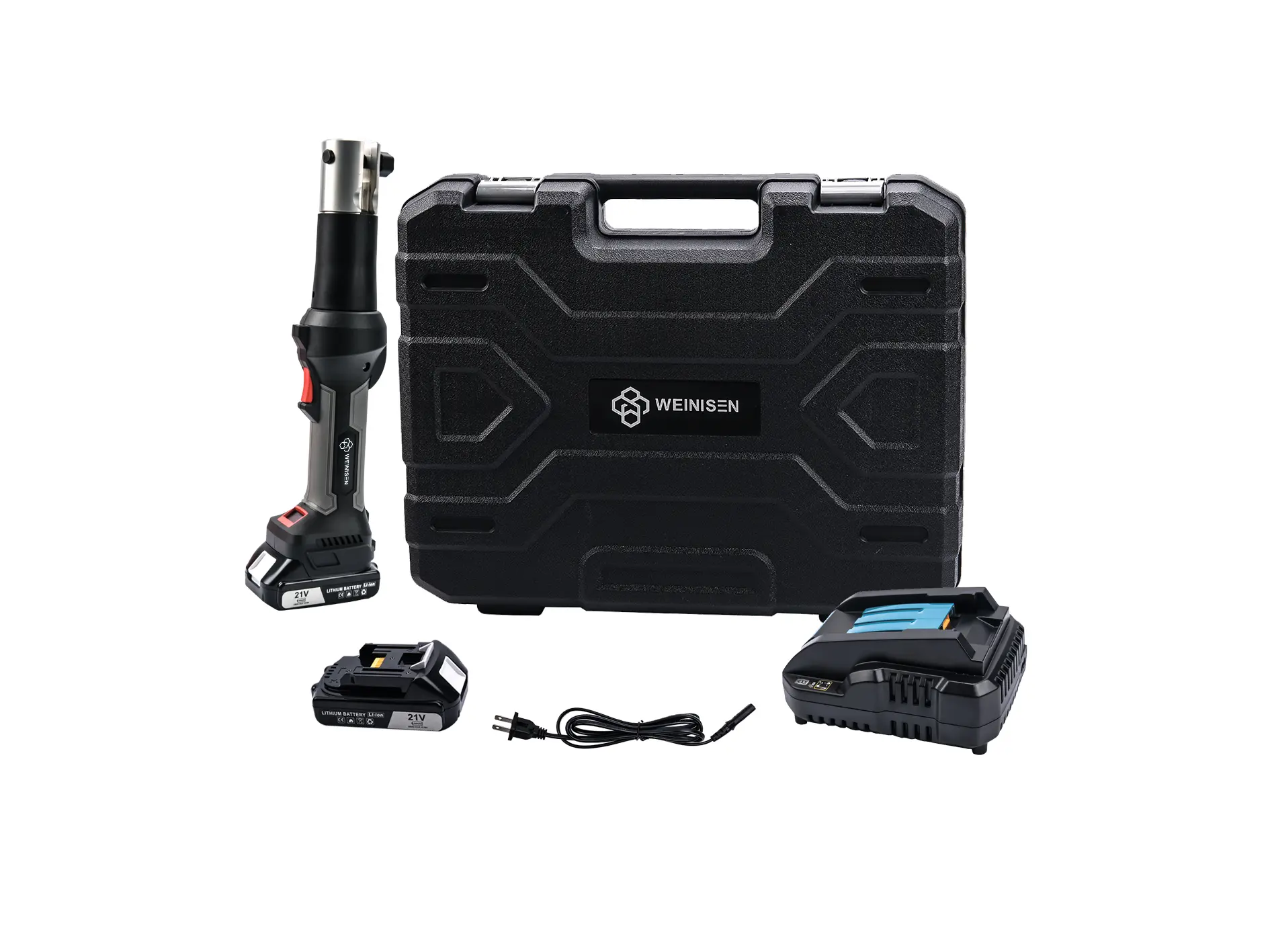

Package Includes

ST-2430B press tool × 1
2.5Ah Li-ion battery × 2
Charger × 1
Carrying case × 1
O rings × 1
Shoulder belt × 1

Jaws

Propress jaws

1/2″ – 1.2kg

3/4″ – 1.2kg

1″ – 1.3kg

Pureflow jaws

3/8″ – 1.2kg

1/2″ – 1.2kg

5/8″ – 1.2kg

3/4″ – 1.1kg

1″ – 1.2kg

1-1/4″ – 1.2kg

1-1/2″ – 1.3kg

Megapress jaws

1/2″ – 1.2kg

3/4″ – 1.2kg

1″ – 1.3kg

RLS profile jaws

1/4″ – 1.2kg

3/8″ – 1.2kg

1/2″ – 1.2kg

5/8″ – 1.3kg

3/4″ – 1.3kg

7/8″ – 1.3kg

1-1/8″ – 1.3kg

Propress angle jaws

1/2″ – 0.48kg

3/4″ – 0.47kg

1″ – 0.68kg

1-1/4″ – 0.64kg

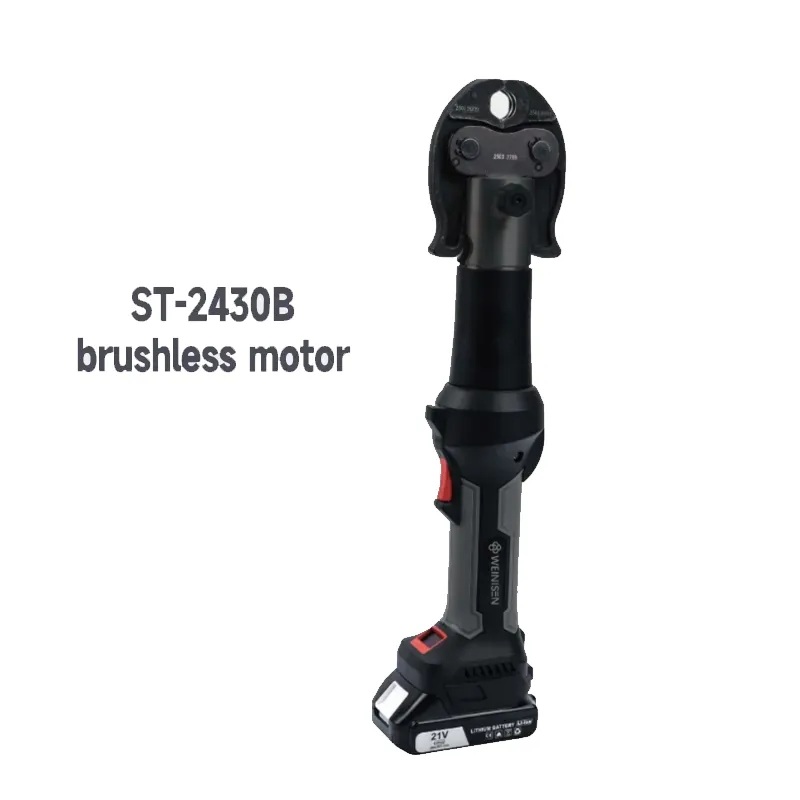

WYRUX ST-2430B Compact Press Tool — 24 kN, 2 kg, brushless drive

Two changes separate the ST-2430B from the older 24 kN design. The first is weight: 2 kg without battery, 0.3 kg below the SM-2430. The second is the motor: brushless, with no carbon brushes to inspect or renew. Force and stroke are untouched at 24 kN and 30 mm, and a full press cycle takes 3 seconds.

Why the Weight Difference Shows

Shaving 0.3 kg off a press tool is worth more than the figure suggests once the tool leaves the bench. A lighter body is easier to hold steady with one hand while the other lines up the fitting, and it takes far less out of your shoulder on runs above head height. The grip was reworked in the same generation to sit lighter and more compactly in the hand, so long pressing days cost less.

Ask us about the jaw profiles that suit your fitting system — we supply matched kits.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “ST-2430B Compact Press Tool”

Warranty

TWO years of warranty

WYRUX grants the full statutory warranty of 24 months or 30000 times on all new pressing devices and tools as well as other accessories. The warranty period always begins at the time of delivery and must be proven in case of doubt using purchase documents. Batteries and chargers are excluded. Here the warranty period is 12 months from the date of purchase.

During the warranty period, the warranty covers the repair of all damage or defects in the products that are due to material or manufacturing defects.

ONE year warranty extension for pressing devices, intermediate jaws and pressing slings

WYRUX grants a one-year extended warranty for all new pressing devices, intermediate jaws and pressing collars if they have been serviced at least every 12 months by WYRUX or a specialist workshop authorized by WYRUX.
