Name: SM-1930 Compact Press Tool for PEX & Copper Pipe
SKU: ST-1930 -B-3-1-2-1

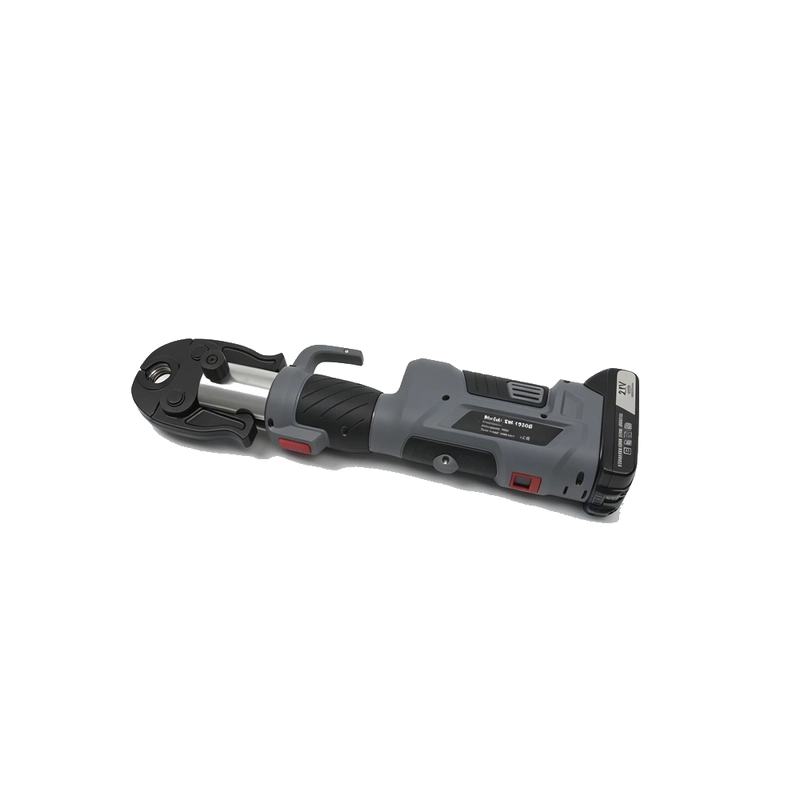

SM-1930 Compact Press Tool

12-28mm Stainless steel pipe
12-35mm(1/2″-1 3/8″) Copper pipe
16-40mm PEX&Multi-layer pipe

This model is a compact mini press tool with an in-line ergonomic grip. Perfect for joining copper, stainless steel, PEX, and multilayer pipes.

Press Tool Catalogue 2026

Motor type: Brush motor

19kN compact press tool

Specifications

Model	SM-1930
Tool type	Compact press tool
Output force	19 kN
Stroke	30mm
Tool weight (without battery)	2.3kg
Battery capacity	2.5 Ah × 2 (included)
Cycle time	4s
Tool height (without battery)	33.5cm

Jaws

V profile jaws

15 mm – 1.2kg

18 mm – 1.2kg

22 mm – 1.2kg

28 mm – 1.3kg

35 mm – 1.3kg

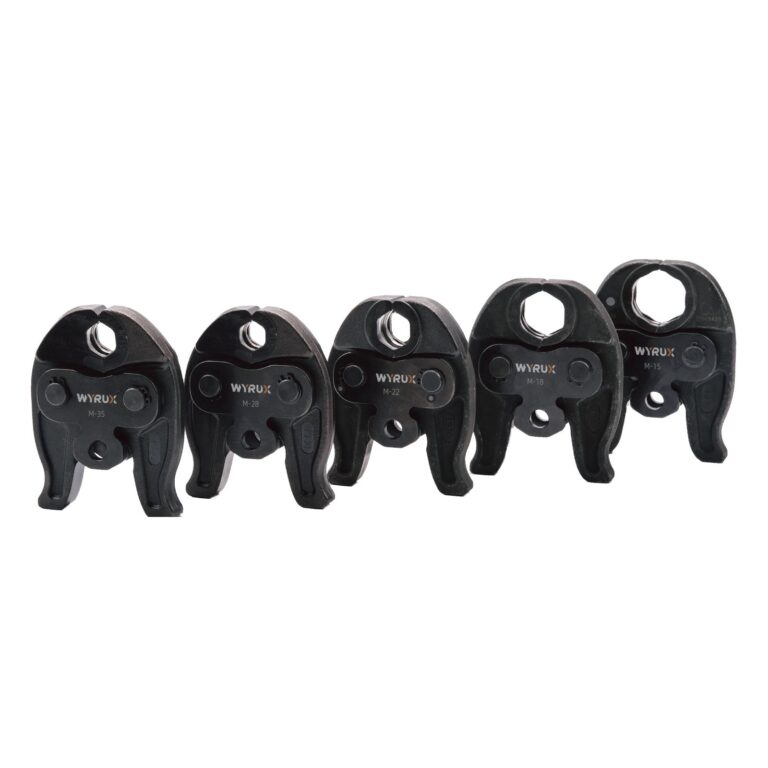

M profile jaws

15 mm – 1.2kg

18 mm – 1.2kg

22 mm – 1.2kg

28 mm – 1.3kg

35 mm – 1.3kg

TH profile jaws

th16 – 1.2kg

th20 – 1.3kg

th26 – 1.4kg

th32 – 1.5kg

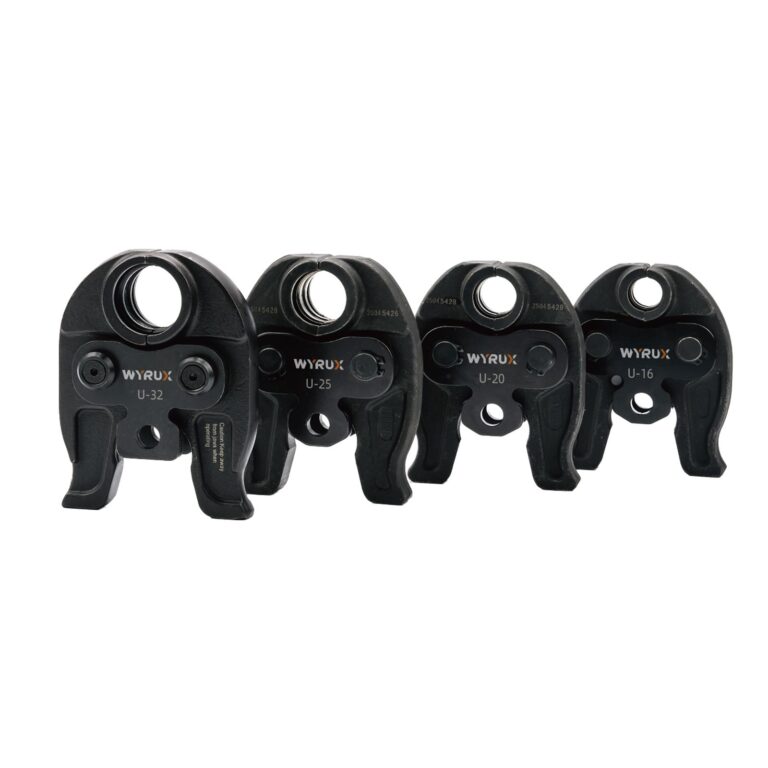

U profile jaws

u16 – 1.2kg

u20 – 1.2kg

u25 – 1.3kg

u32 – 1.4kg

SV profile jaws

13 mm – 1.2kg

20 mm – 1.2kg

25 mm – 1.2kg

RLS profile jaws

1/4″ – 1.2kg

3/8″ – 1.2kg

1/2″ – 1.2kg

5/8″ – 1.3kg

3/4″ – 1.3kg

7/8″ – 1.3kg

1-1/8″ – 1.3kg

Angle jaws (M profile)

15 mm – 0.48kg

18 mm – 0.47kg

22 mm – 0.47kg

28 mm – 0.68kg

35 mm – 0.64kg

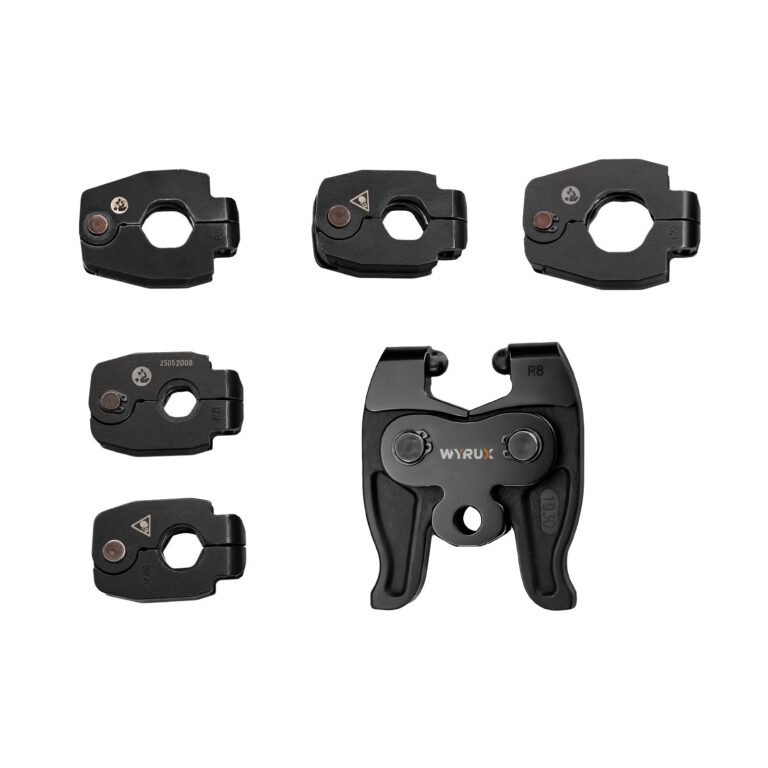

Angle jaws (V profile)

15 mm – 0.48kg

18 mm – 0.47kg

22 mm – 0.47kg

28 mm – 0.68kg

35 mm – 0.64kg

Package Includes

SM-1930 press tool × 1
2.5Ah Li-ion battery × 2
Charger × 1
Carrying case × 1
O rings × 1
Shoulder belt × 1

SM-1930 Compact Press Tool — In-Line Ergonomic Pressing for Stainless, Copper and PEX

The SM-1930 is a compact press tool built for installers who press all day and want a tool that feels like an extension of the hand. Its in-line ergonomic grip keeps the tool balanced along the pipe axis, reducing wrist strain on long runs of stainless steel, copper, PEX and multilayer pipe.

Pressing Range

Stainless steel pipe: 12–28 mm
Copper pipe: 12–35 mm (1/2″–1 3/8″)
PEX and multilayer pipe: 16–40 mm

Why the SM-1930 Is Popular with Installers

In-line design: the tool body aligns with the pipe, which is noticeably more comfortable than L-shaped presses for overhead and continuous work.
Compact mini-press format: easy to carry into service voids and under-sink spaces.
Interchangeable jaws: accepts the compact-tool jaw range (M, U, V, TH and ring profiles) to match every pipe brand and profile.
Automatic cycle: full press cycle completes and releases automatically for consistent joints.

Quality and Support

The SM-1930 is manufactured from heat-treated alloy components with precision-machined pressing surfaces, 100% function-tested and warranted for two years or 30,000 cycles. Order with a starter set of jaws for your local pipe standard, and our team will confirm compatibility before shipping.

Choosing Jaws for the SM-1930

The SM-1930 works with the compact-tool jaw family, so before you order, match the jaw profile to the press fittings your local market uses — M, U, V, TH or ring profiles are all available. Using the correct jaw with clean fittings is what guarantees a leak-free joint on copper, stainless and PEX systems alike.

Each SM-1930 is built in our own factory from heat-treated alloy components, 100% function-tested and covered by a two-year or 30,000-cycle warranty. Order it with a starter jaw kit matched to your pipe standard, and our team will confirm compatibility before dispatch.
