Description
32kN standard press tool
Specifications
| Model | SM-3240B |
|---|---|
| Tool type | Standard press tool |
| Output force | 32 kN |
| Stroke | 30mm |
| Tool weight (without battery) | 3.8kg |
| Battery capacity | 4.0 Ah × 2 (included) |
| Cycle time | 5s |
| Tool height (without battery) | 40cm |

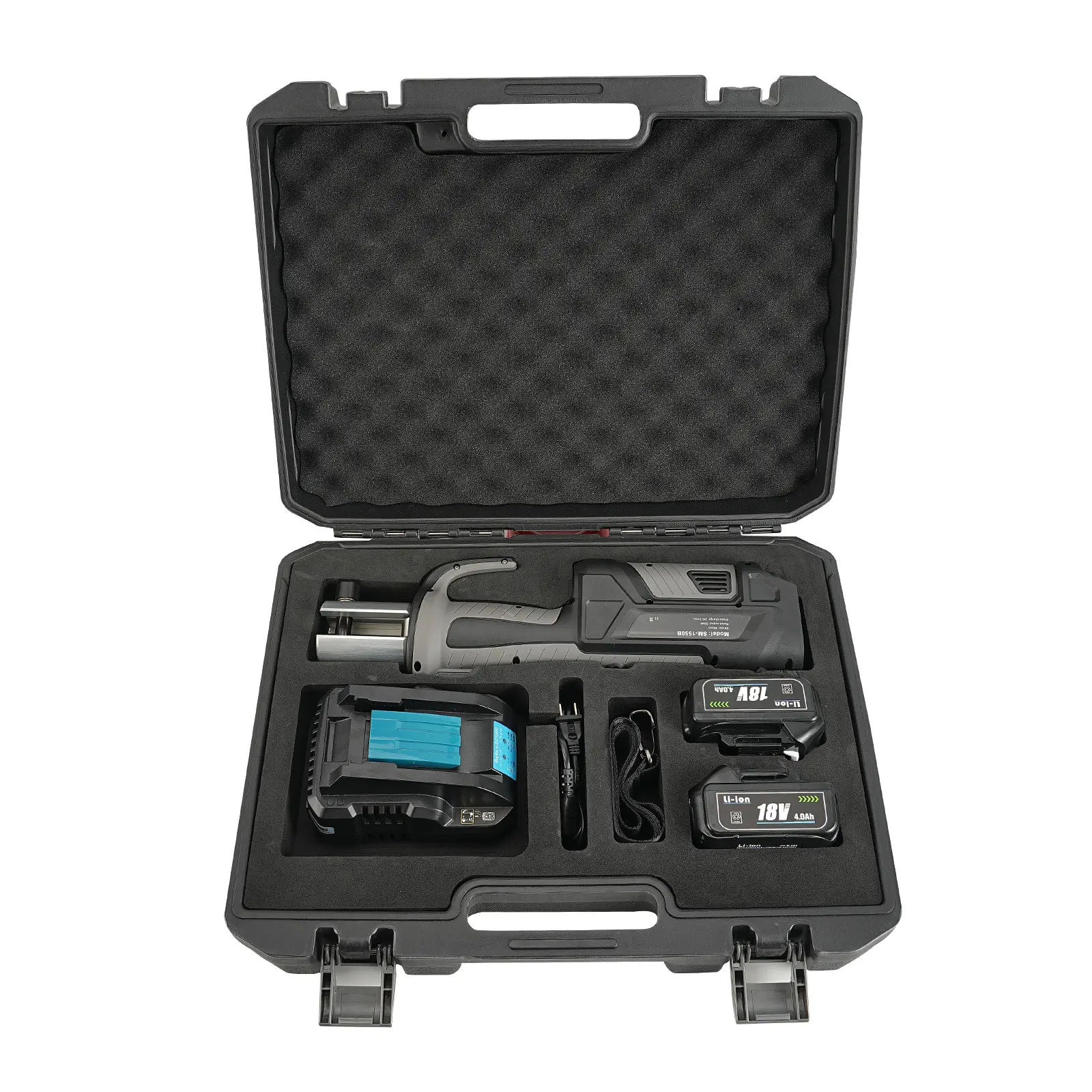

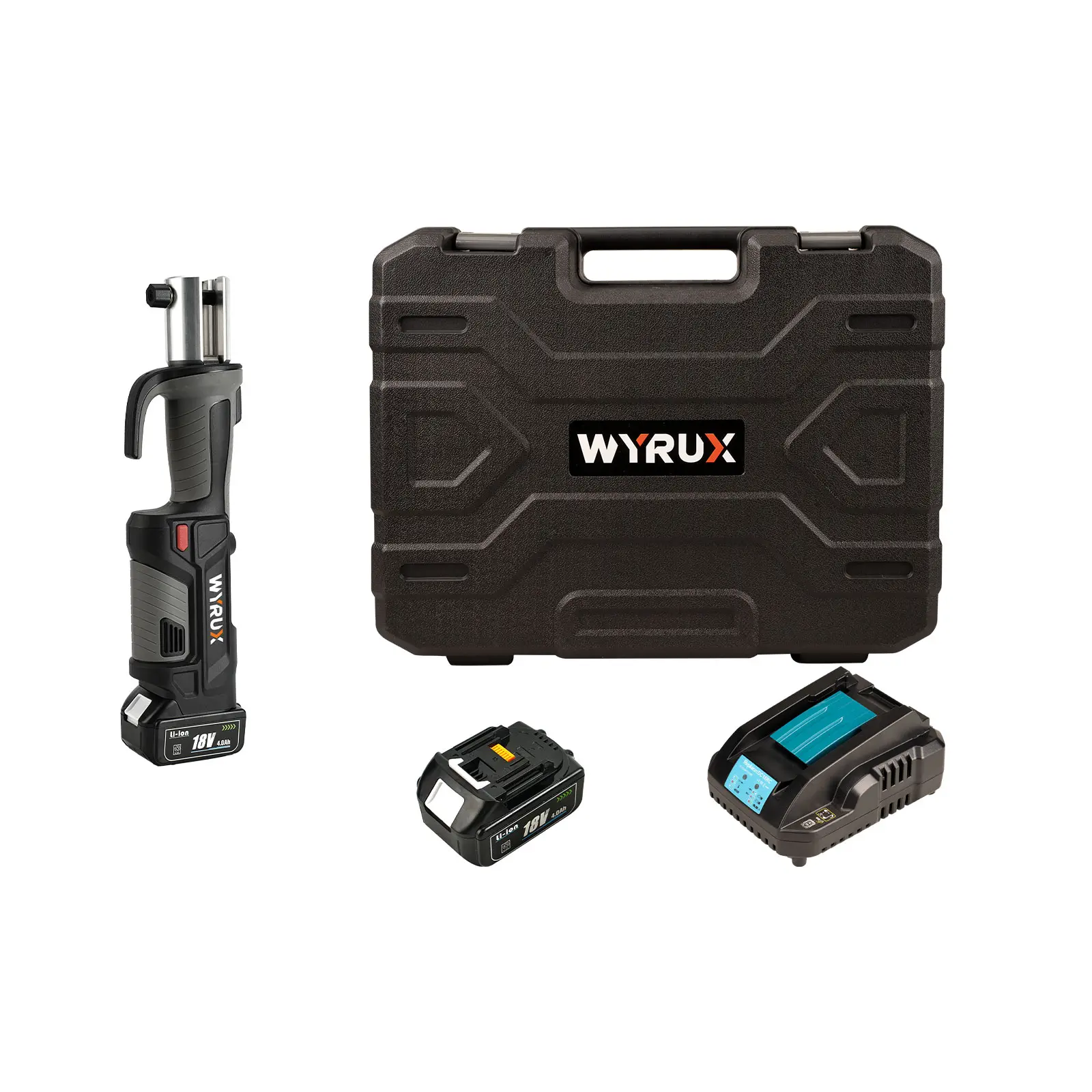

Package Includes
- SM-3240B press tool × 1
- 4.0Ah Li-ion battery × 2
- Charger × 1
- Carrying case × 1
- O rings × 1
- Shoulder belt × 1
Jaws
M profile jaws
15 / 18 / 22 / 28 / 35 / 42 / 54 mm

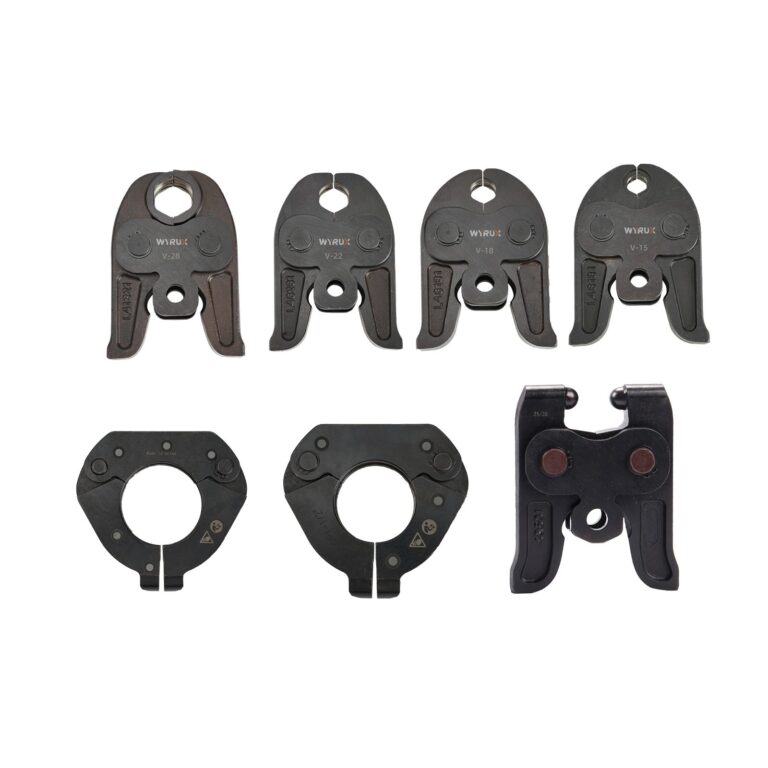

V profile jaws
15 / 18 / 22 / 28 / 35 / 42 / 54 mm
RLS profile jaws
1/4″ / 3/8″ / 1/2″ / 5/8″ / 3/4″ / 7/8″ / 1-1/8″
Vus jaws
1/2″ / 3/4″ / 1″ / 1-1/4″ / 1-1/2″ / 2″
Megapress jaws
1/2″ / 3/4″ / 1″ / 1-1/4″ / 1-1/2″ / 2″

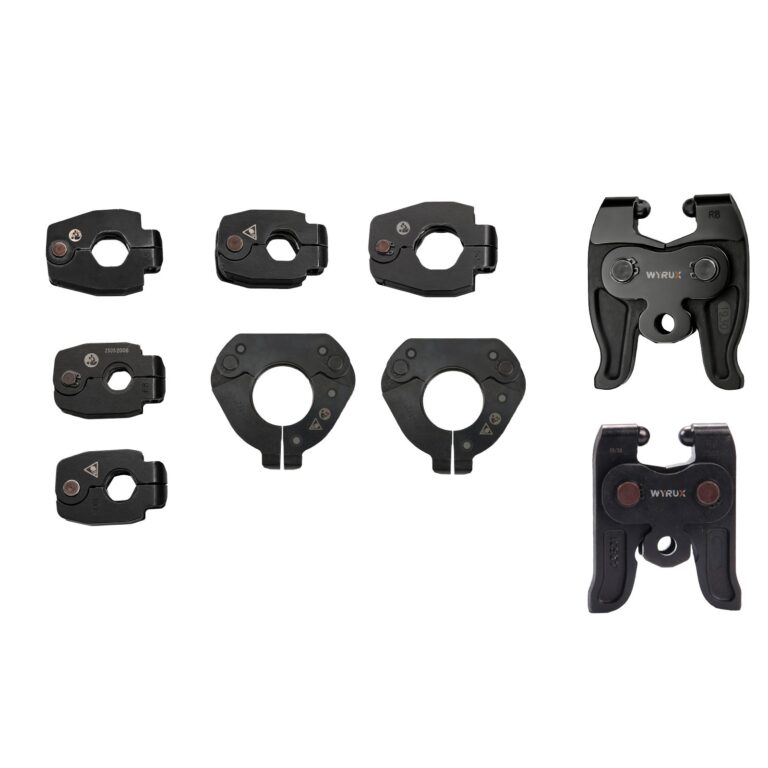

Angle jaws (M profile)
15 / 18 / 22 / 28 / 35 / 42 / 54 mm
Angle jaws (V profile)
15 / 18 / 22 / 28 / 35 / 42 / 54 mm

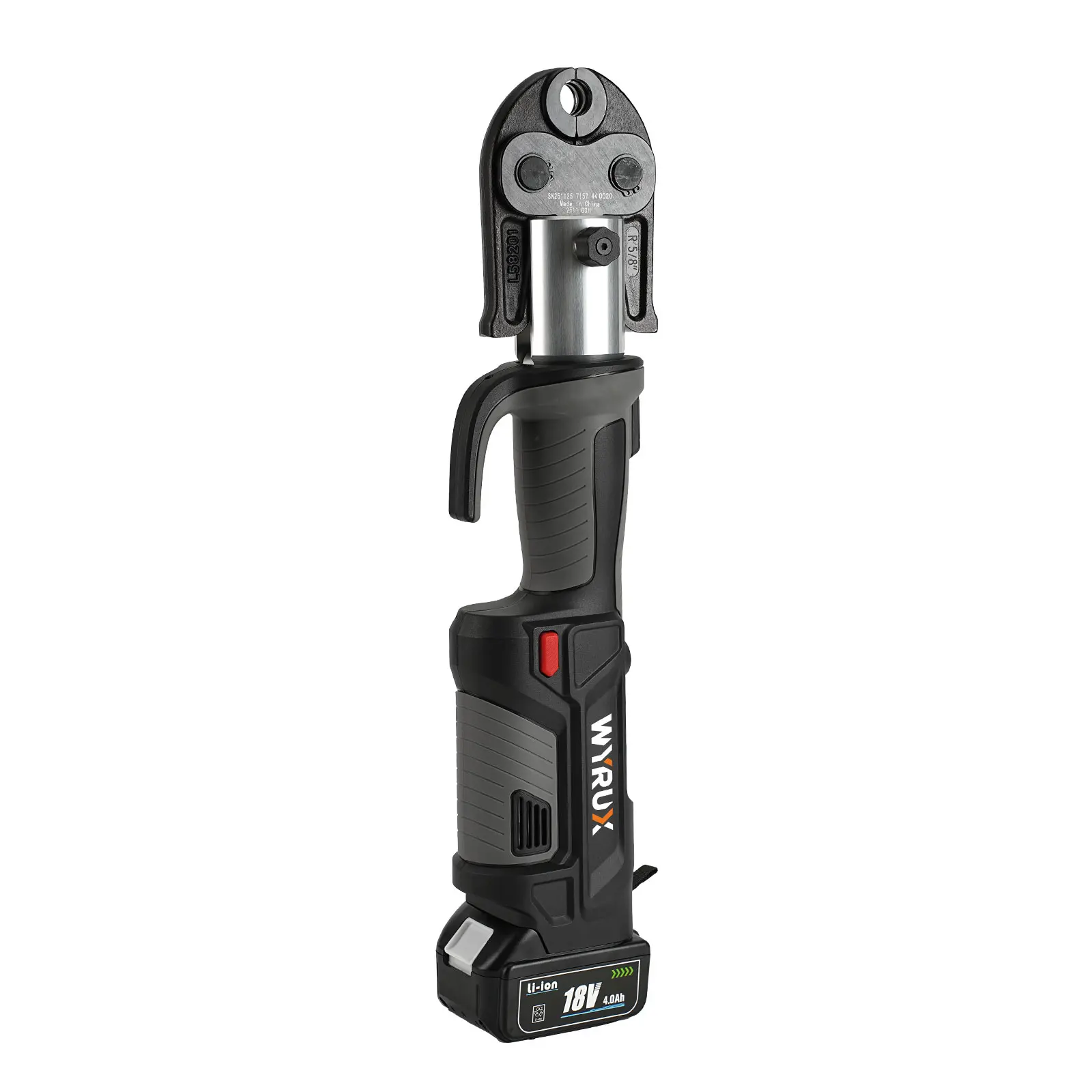

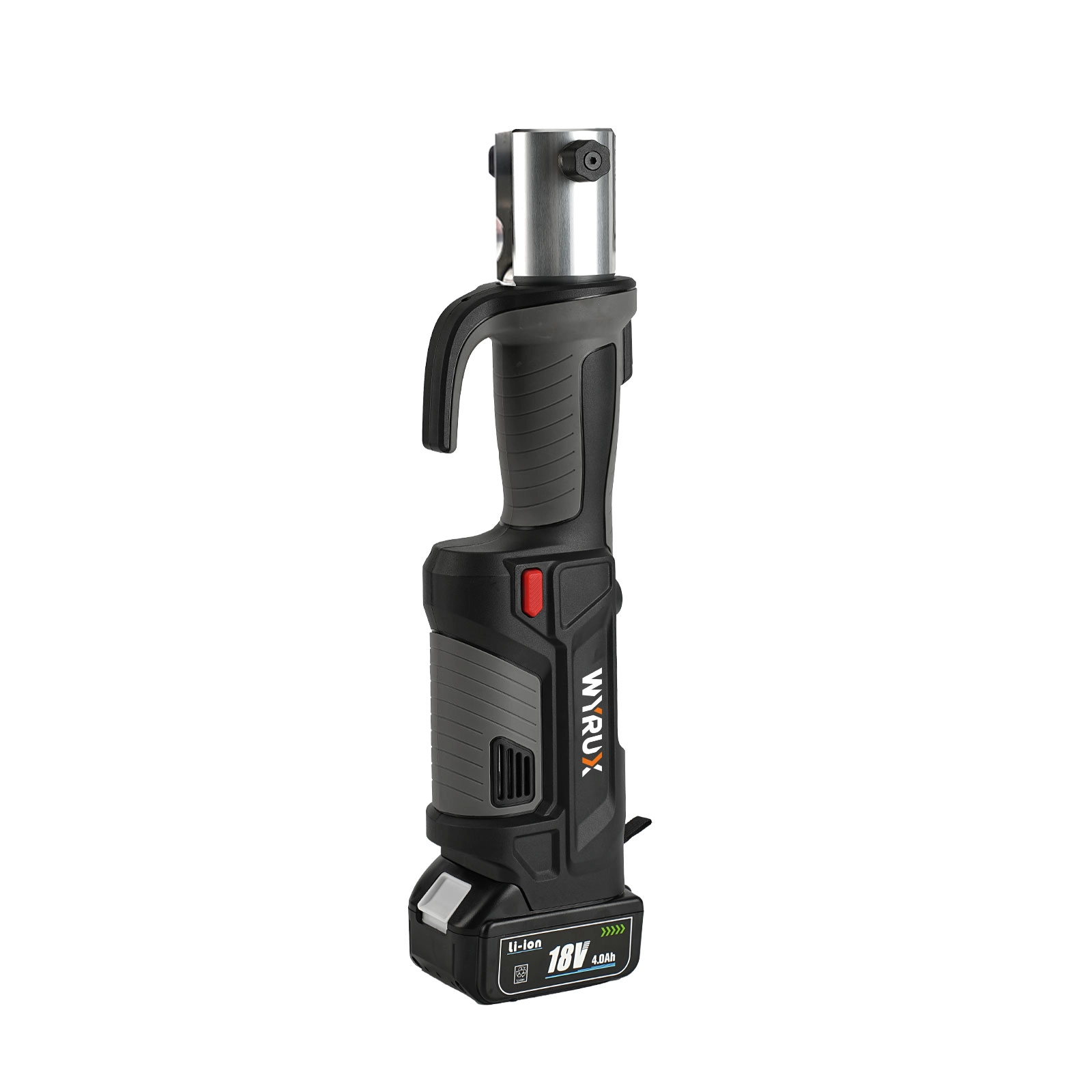

WYRUX SM-3240B 32 kN Standard Press Tool
Standard-class pressing for the larger end of the pipe range
The WYRUX SM-3240B is a battery-powered standard press tool rated at 32 kN of output force with a 30 mm stroke. Jaw coverage starts at 15 mm and runs up to 54 mm in the metric M and V profiles, and the inch-series sets are included as well: RLS from 1/4″ to 1-1/8″, and Vus and Megapress from 1/2″ up to 2″. Angle jaws in both metric profiles cover the same 15 mm to 54 mm span, so straight and angled positions are handled by one tool body.
What the 32 kN Class Delivers
Output force is 32 kN, the stroke is 30 mm and a complete pressing cycle takes 5 seconds. Without the battery the tool stands 40 cm tall and weighs 3.8 kg. This is the class to pick when the fittings at the top of the range are part of the programme, where the jaw size rather than the tool speed decides whether a press can be made at all.
Where the SM-3240B Is Used
The tool suits plumbing, heating and refrigeration installations and light industrial pipework, where metric and imperial press systems are often installed side by side. Because one body accepts the metric M and V jaws up to 54 mm, the RLS set and the Vus and Megapress sets up to 2″, a single SM-3240B can be specified for a site instead of one tool per pipe system.
Reviews (0)
Warranty
TWO years of warranty
WYRUX grants the full statutory warranty of 24 months or 30000 times on all new pressing devices and tools as well as other accessories. The warranty period always begins at the time of delivery and must be proven in case of doubt using purchase documents. Batteries and chargers are excluded. Here the warranty period is 12 months from the date of purchase.
During the warranty period, the warranty covers the repair of all damage or defects in the products that are due to material or manufacturing defects.
ONE year warranty extension for pressing devices, intermediate jaws and pressing slings
WYRUX grants a one-year extended warranty for all new pressing devices, intermediate jaws and pressing collars if they have been serviced at least every 12 months by WYRUX or a specialist workshop authorized by WYRUX.
