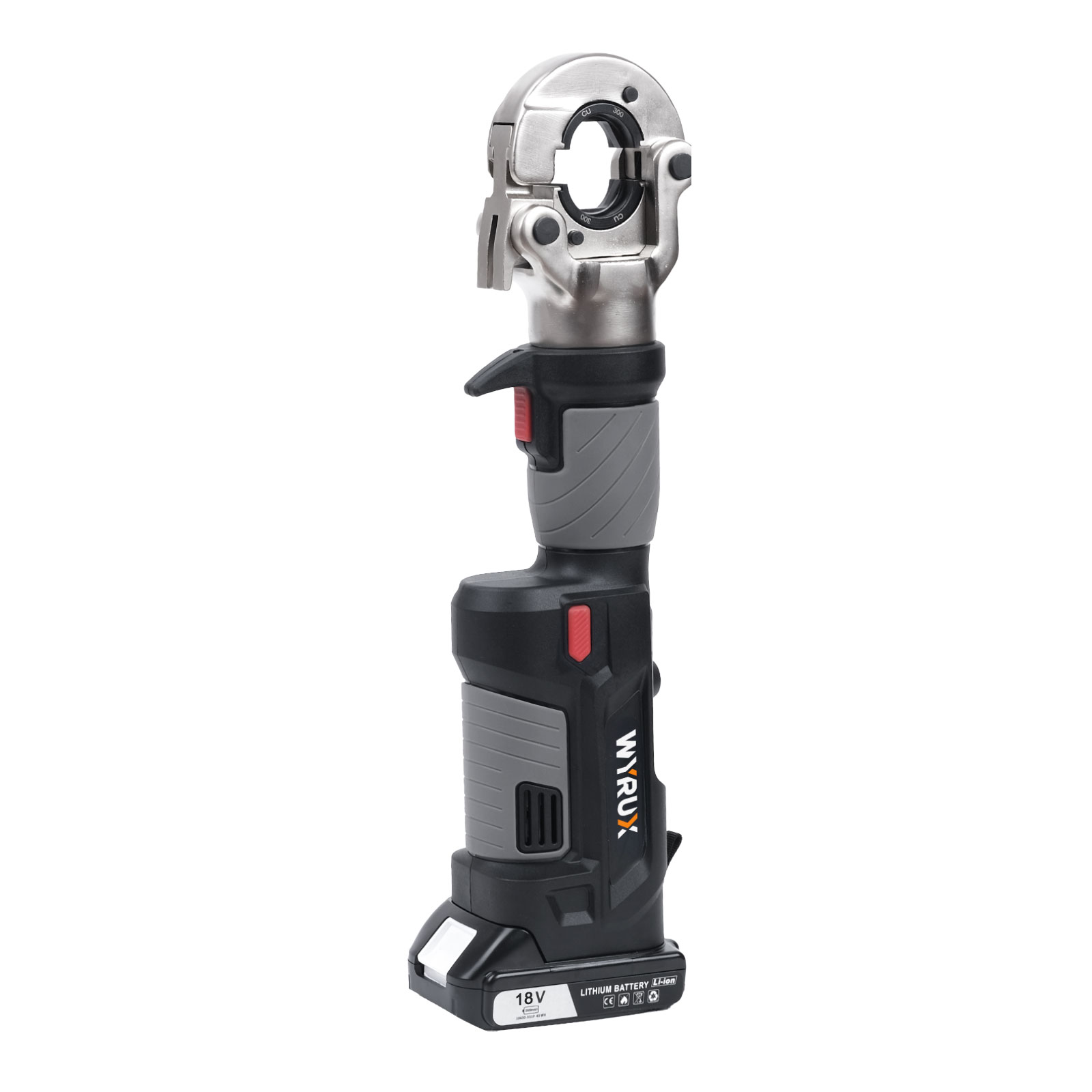

SM-300C Battery Powered Cable Crimping Tool
SM-300C Battery Powered Cable Crimping Tool
- Wide crimping capacity up to 300 mm²
- Integrated cutting and crimping functions
- Auto reset system for safe operation
- Compact and ergonomic design
Description
Stable performace
Longer Service Life
Auto Pressure Release
Overload Protection
Lightweight & Ergonomics
Lower Noise
Low heat generation
IP54
| Technical data | SM-300 |
| HYDRAULIC RAM OUTPUT | 60kN |
| Stroke | 17mm |
| Crimpng range: | Cu 300mm:/Al 240mm2 |

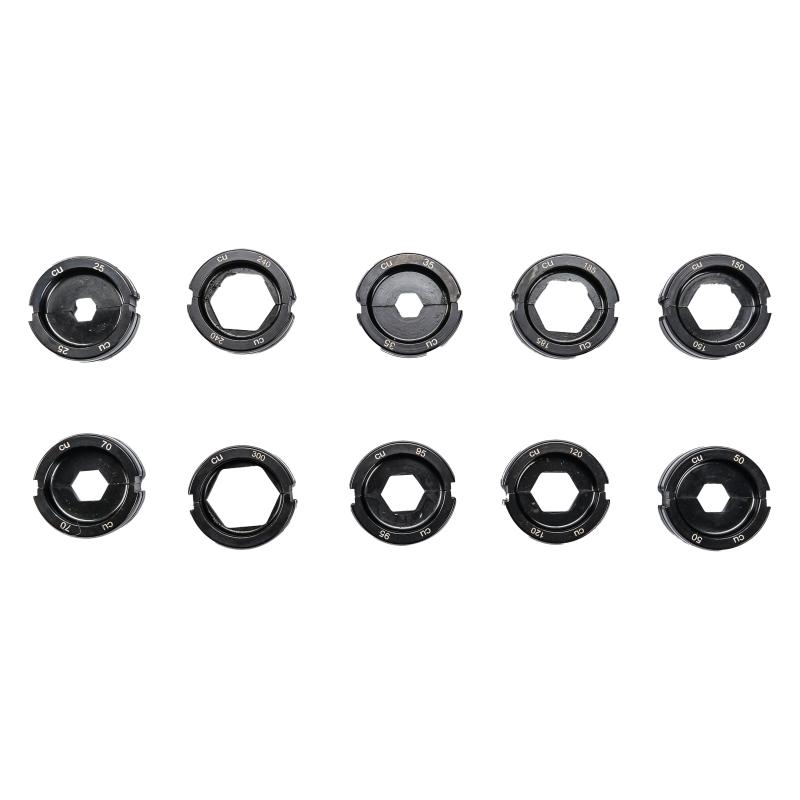

| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300 mm2 |
| Voltage/capacity: | 18V/2.5Ah |
| Charging time: | 40 mins |
| Charging voltage: | AC 100V-240V ,50-60Hz |
| Weight: | 3.7kgs(only tool) |
| 4kgs(with battery) | |
| Height: | 10cm |
| Length: | 39cm |
| Service Intenal: | 10000 times |
| Operating temperature: | -10C°~40° |
